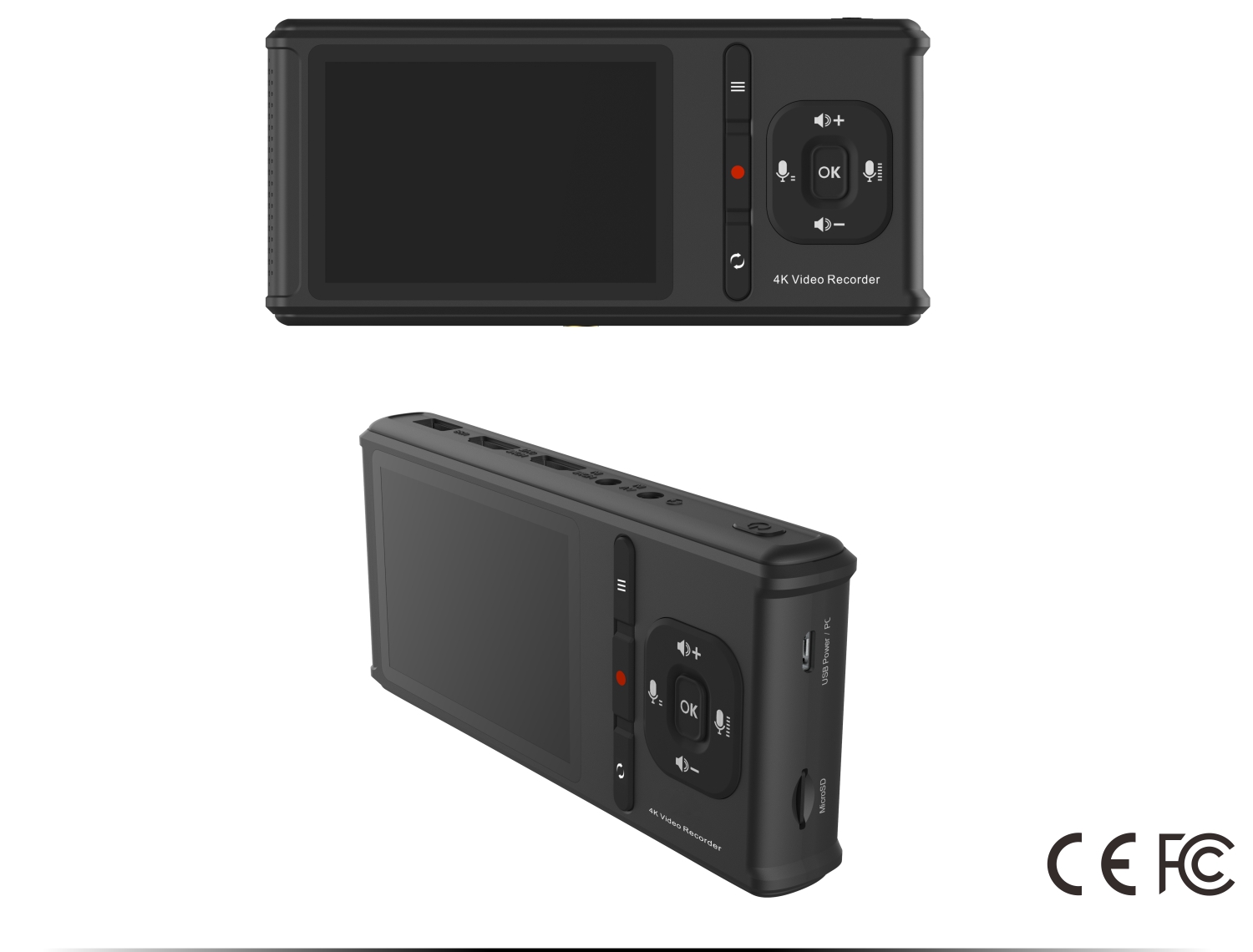

D750 4K Video Recorder

Key Features

• 4K30 HDMI pass-through: resolutions to 1080P60

• Recording resolution for standalone mode:

  1280x720@60hz,1920x1080@60hz, 3840x2160@30hz

• Capture video in 4K30 with H.265 hardware encoder

• Supports UVC 2.0 & live stream with OBS/XSplit

• Support capture screenshot & pause recording

• Microphone input for audio overlay

• Supports TF and USB storage (microSD:512G, USB:512G and 2TB)

• Built-in 1800mAh battery for over 2.5-hours recording

• 3.5” Panel for preview & playback

• Built-in 2Watt high quality speaker


Hardware Spec & Connectors

• HDMI In (V1.4): 4K30

• HDMI Out (V1.4): 1080P60 pass-through & Playback

• USB Type A (V2.0): support HDD & USB Flash Drive storage

• Micro USB: connect to PC (UVC 2.0)

• Microphone headset input (3.5mm CTIA jack): for audio overlay

• TF (microSD) card

• Power DC In (for 5V/2A power adapter)

• IR for Remote Control

• Built-in tripod hole for camera stand


Software Feature

• OS: Linux

• Hardware encoder (4K30, H.265)

• OSD (on 3.5” panel & HDMI output)

-    Language

-    System Date / Time setting

-    Time Watermark

-    Record Video Quality

-    Select Video Source

-    USB Mode

-    Default Storage Device

-    Schedule Recording

-    Restore Factory Setting

-    Firmware Upgrade

• Pause Recording, Capture, Delete, Playback, Photo Gallery

• Capture image during video recording

• Fast-Forward/Fast Backward: 10 sec

• Support OBS/XSplit for live-streaming through Windows PC (UVC 2.0)

• Bit Rate Control


Package Contents

• D750 4K30 video recorder

• HDMI (V1.4) cable: 1.5 meter

• USB power adapter (5V/2A)

• USB power / data cable (0.8 meter)

• Quick Start Guide

• AV Cable

• Remote Control


Storage Device

• microSD card (Max:512GB)

• USB storage (HDD:2TB and USB Flash Max:512GB)

• Support storage format: FAT32, exFAT, NTFS



Download

D750 HD60 Video Recorder Firmware
