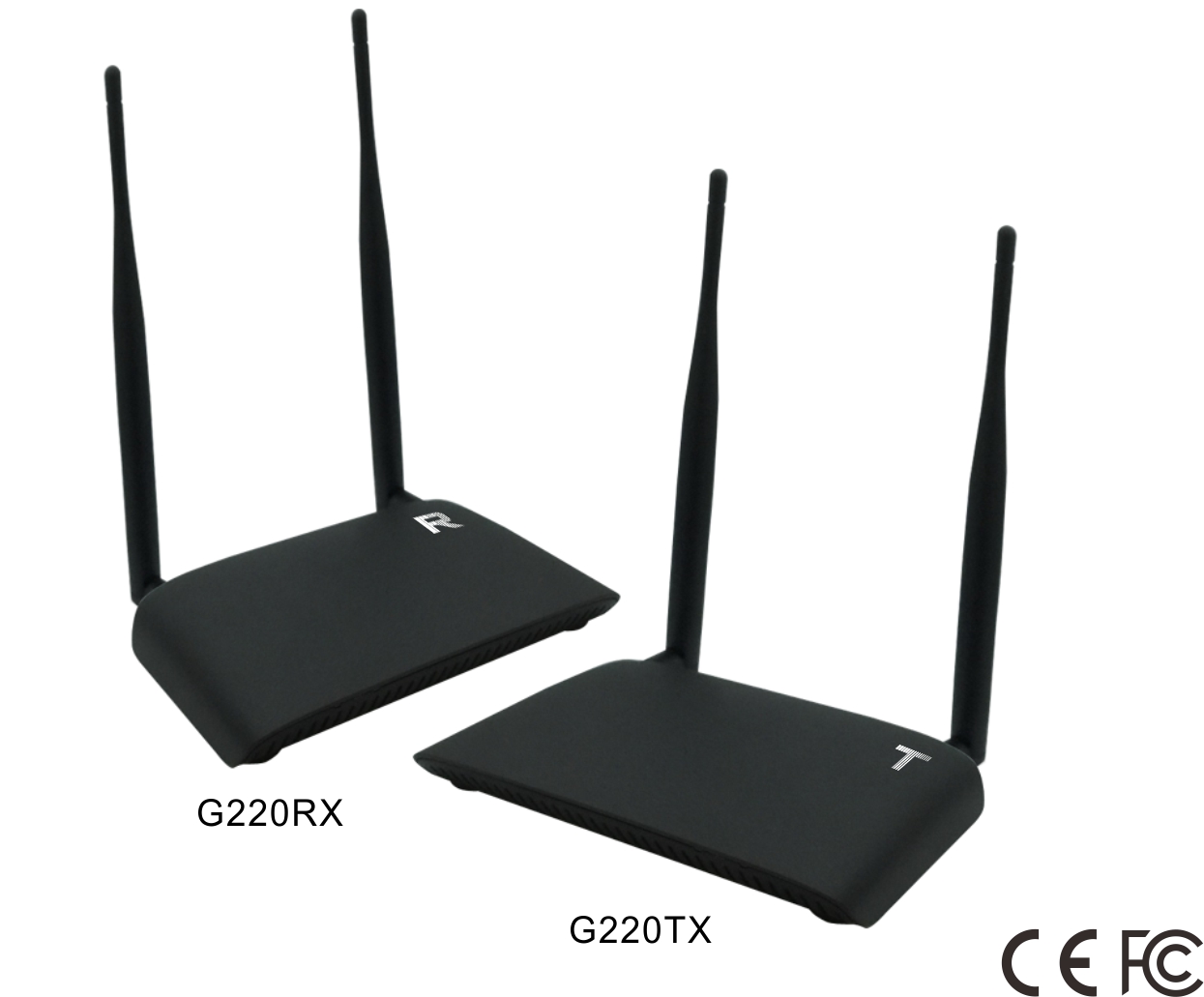

G220 Wireless HDMI Extender
• 4K60 HDR pass-through (TX), HDCP 2.0

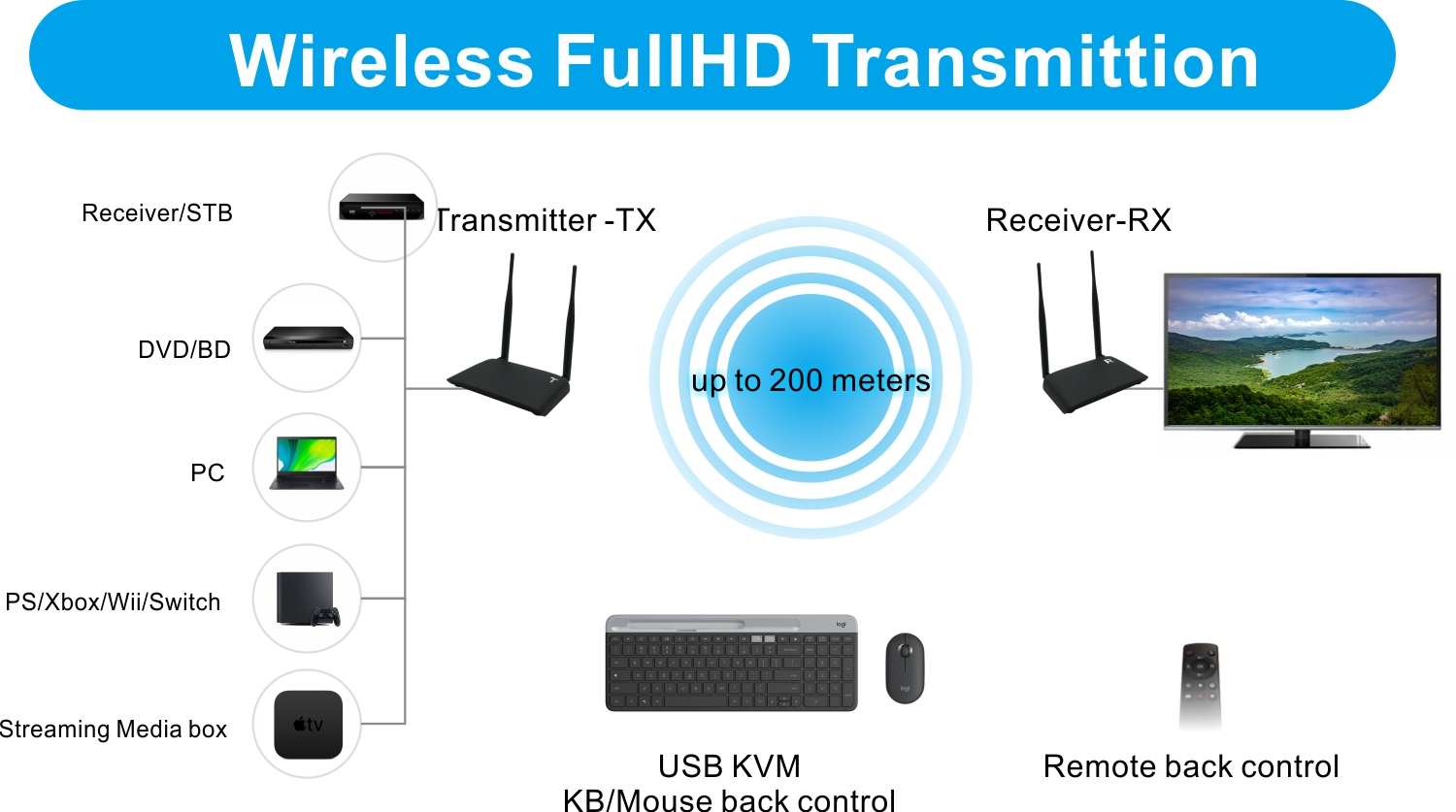

• FullHD wireless transmission through WiFi (5G, 2T2R)
• Long distance transmission up to 200 meters (clear line of sight)
• Auto pair & Auto Connection
• Remote Control & USB back control
Specification
Features | Description |
HDMI pass-through | 1080i/1080p/720p/576p/480p, up to 4K60 HDR (TX) |
Video Compression | H.264 |
Video Input / Output | HDMI 2.0 & HDCP 2.2 compliant |
Latency | about 100ms |
Transmission distance | 200 meters (clear line of sign) |
Connectivity | 5GHz 802.11ac (WiFi) |
TX-RX Pairing | Default automatic one-to-one pairing |

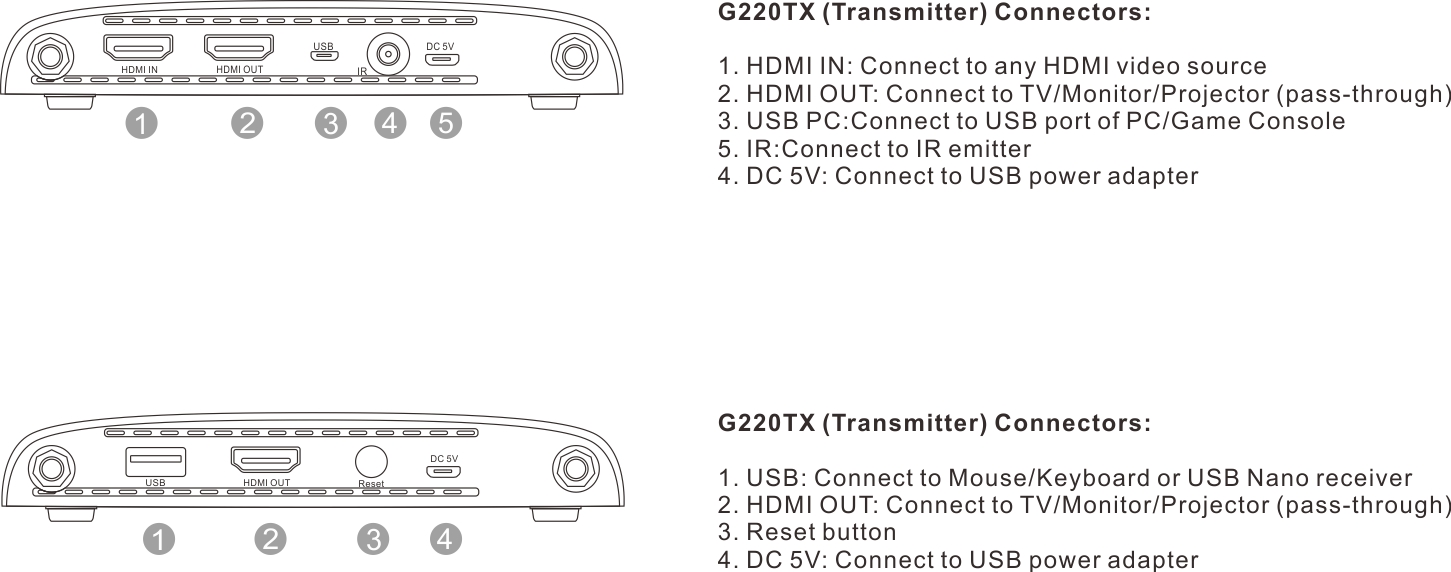

Connectors on G220TX (Transmitter):
Connector | Description |
MicroUSB (power) | 5V/1A |
HDMI in | Connect to any HDMI video source |
HDMI out | Connect to TV/Monitor/Projector (pass-through) |
IR out | Connect to an IR emitter |
USB-A | Connect to USB port of the game console or PC |
Connectors on G220RX (Receiver):
Connector | Description |
MicroUSB (power) | 5V/1A |
HDMI out | Connect to a TV/Monitor/Projector |
IR Receiver | Built-in |
USB | Connect to Mouse/Keyboard or USB Nano receiver |

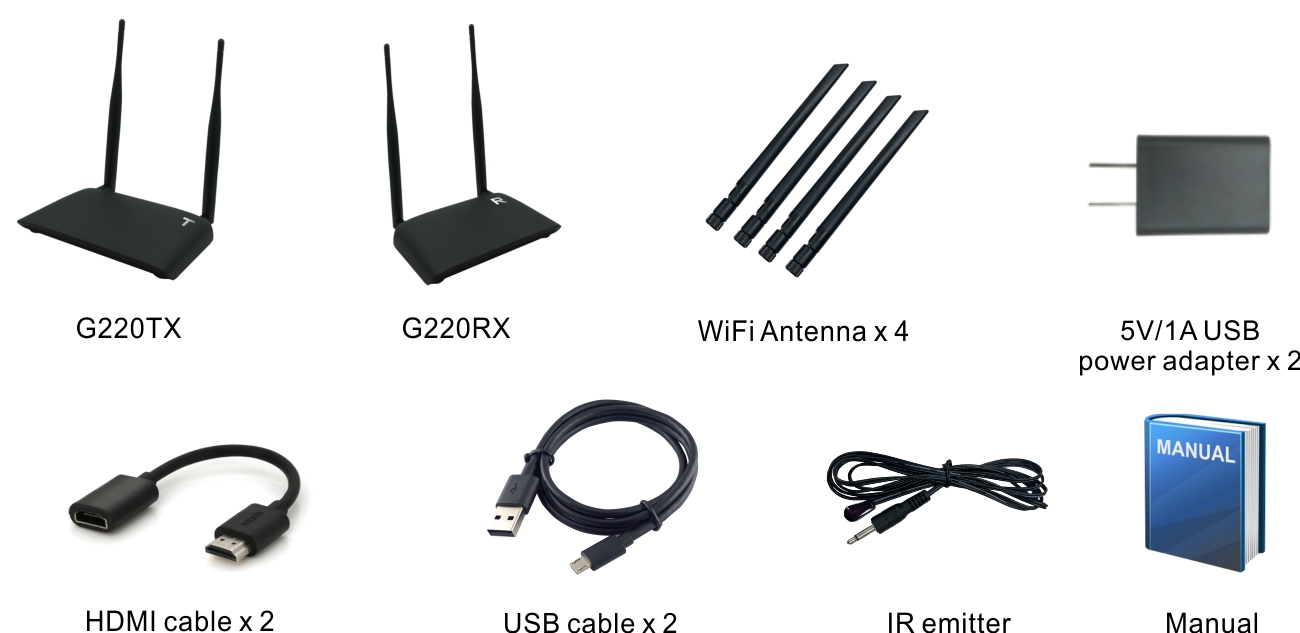

Package Contents
