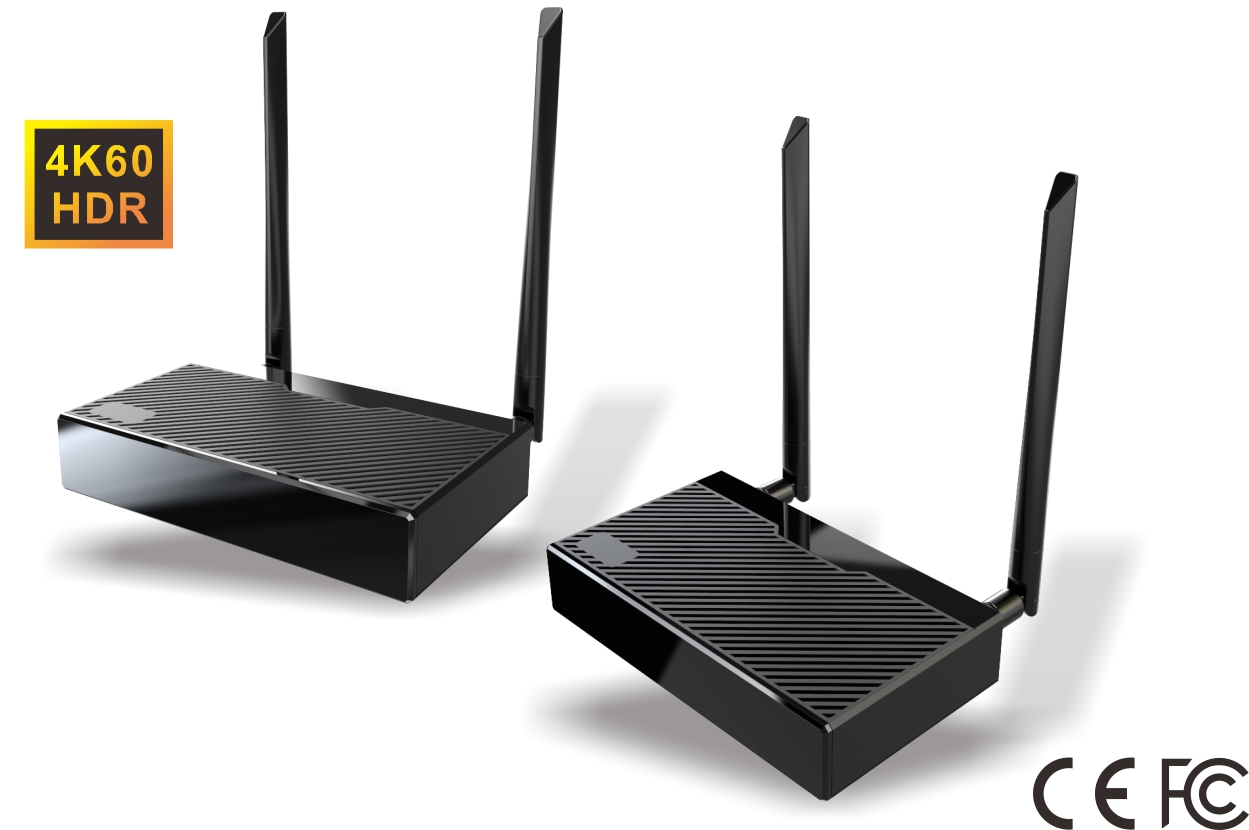

G400 4K Wireless HDMI Extender



• Support 4K60 HDR pass-through (Transmitter Only)

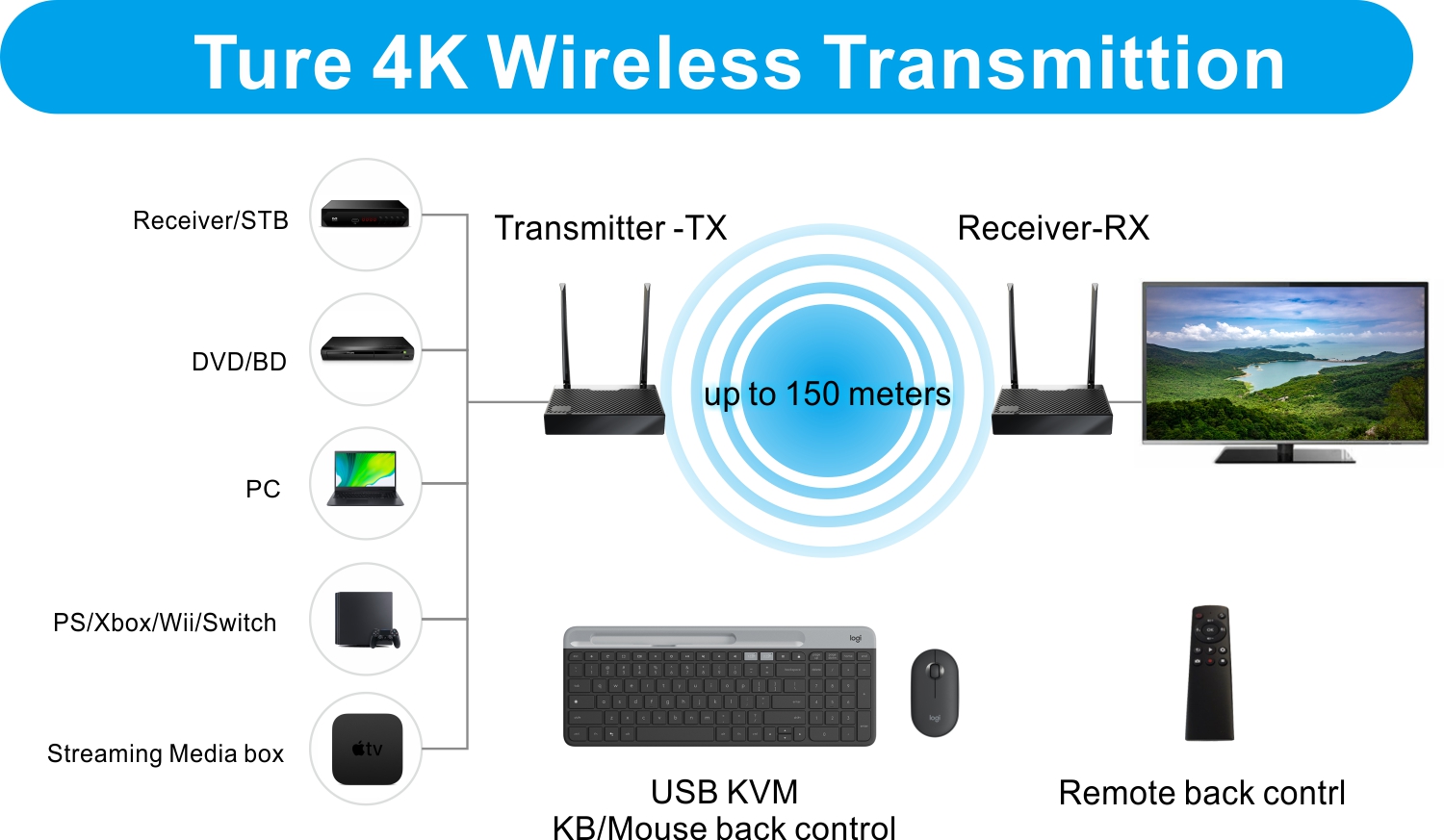

• True 4K wireless transmission through WiFi 11ac (5G, 2T2R, MIMO)

• Up to 150 meters transmission (clear line of sight)

• Auto pair & connection, Auto channel selection, Plug & Play

• Remote Control & USB back control for Keyboard/Mouse

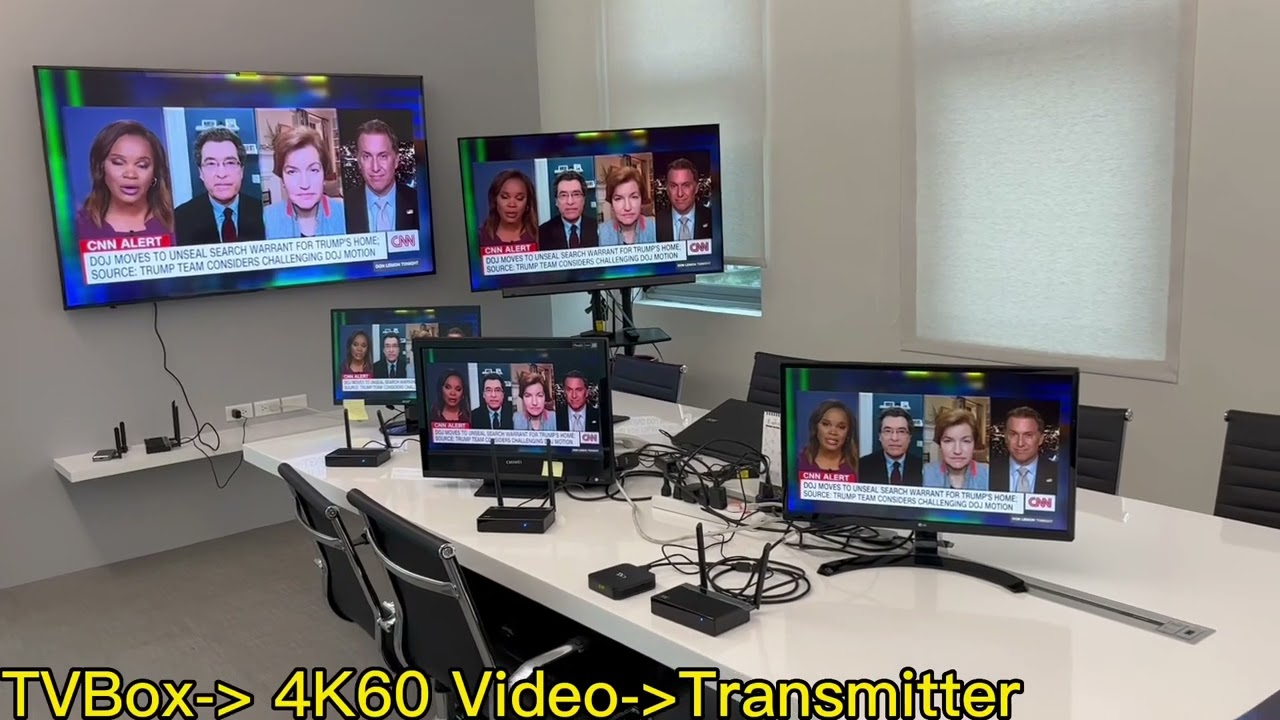

• Multi-room support & Multicast (one Transmitter to max. 4 Receivers simultaneously)

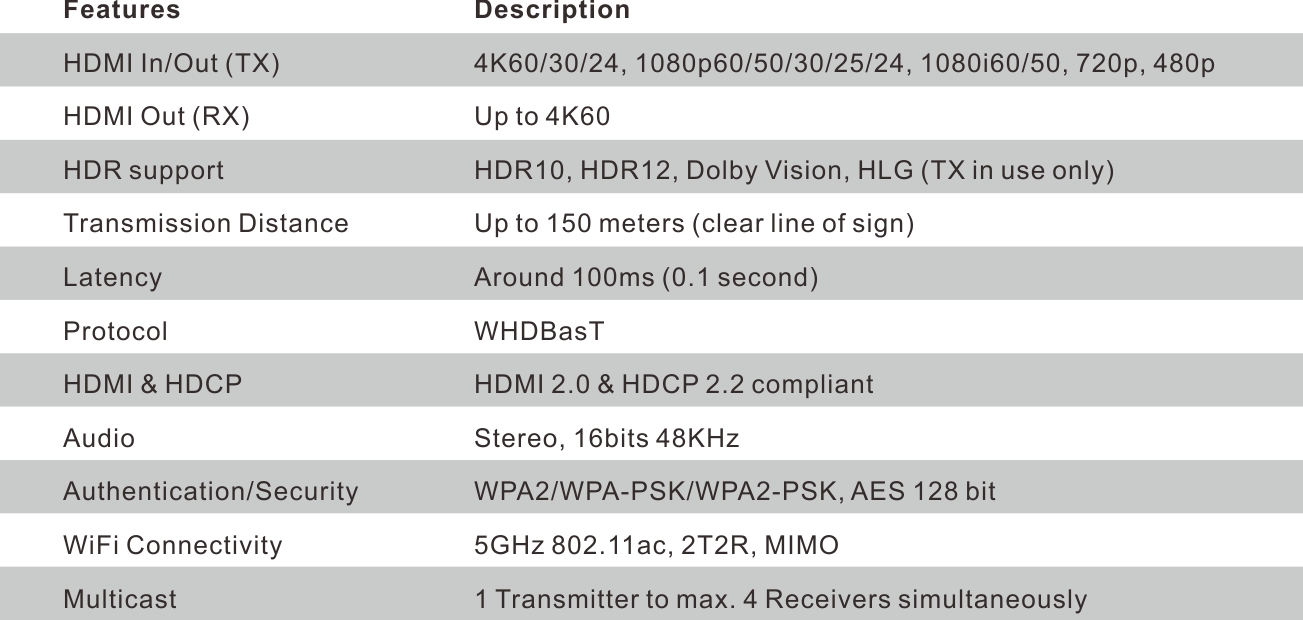

Features:



Features

Description

HDMI pass-through

4K60/30/24, 1080p60/50/30/25/24, 1080i60/50, 720p, 480p

HDMI Out (RX)

Up to 4K60

HDR support

HDR10, HDR12, Dolby Vision, HLG (TX in use only)

Transmission Distance

Up to 150 meters (clear line of sign)

Latency

Around 100ms (0.1 second)

Protocol

WHDBasT

HDMI & HDCP

HDMI 2.0 & HDCP 2.2 compliant

Audio

Stereo, 16bits 48KHz

Authentication/Security

WPA2/WPA-PSK/WPA2-PSK, AES 128 bit

WiFi Connectivity

5GHz 802.11ac, 2T2R, MIMO

Multicast

1 Transmitter to max. 4 Receivers simultaneously

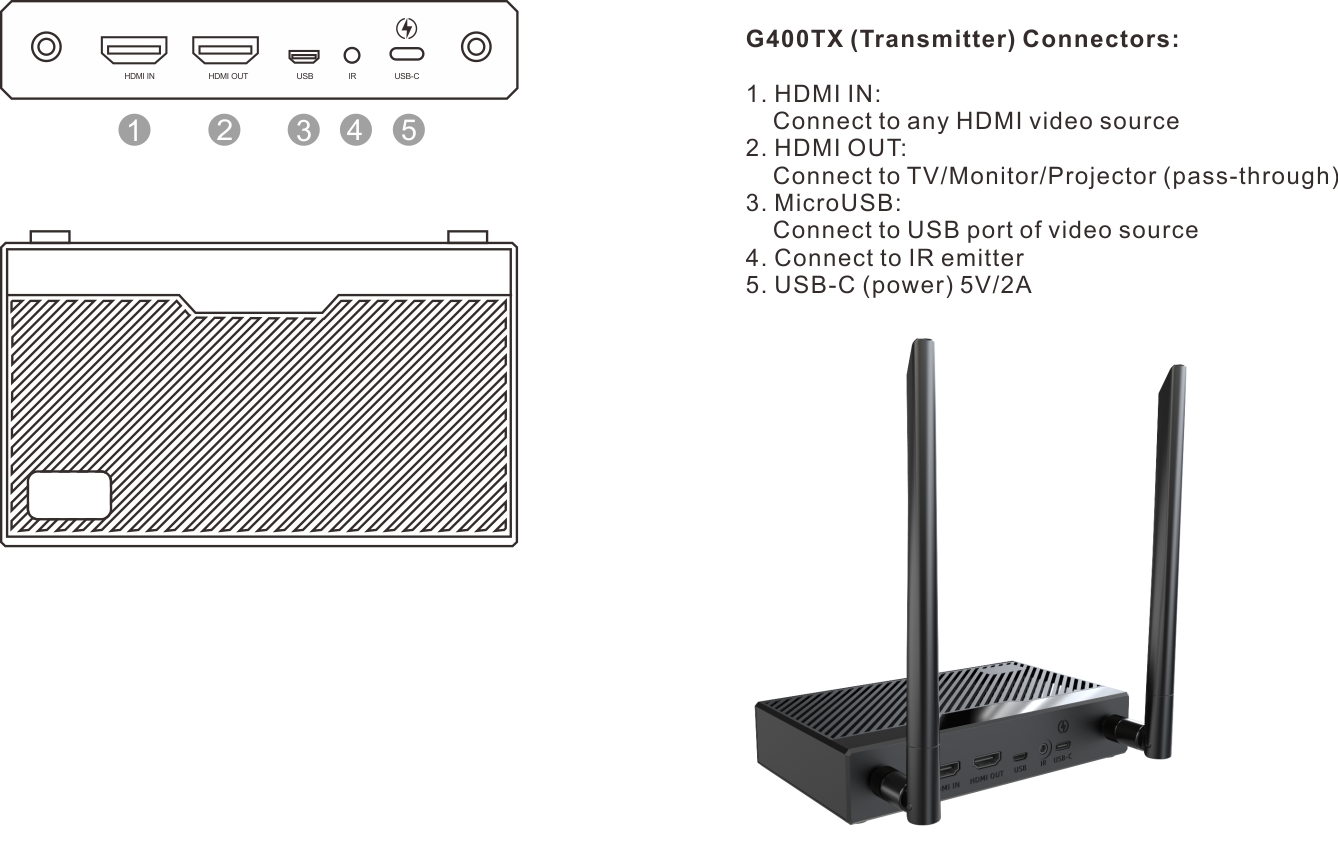

Connectors on G400TX (Transmitter):

Connector

Description

USB-C (power)

DC 5V/2A (Power Consumption 7W)

HDMI in

Connect to any HDMI video source (HDR supported)

HDMI out

Connect to TV/Monitor/Projector (pass-through)

IR Blaster

Connect to an IR emitter

MicroUSB

Connect to USB port of video source (PC/Game Console)

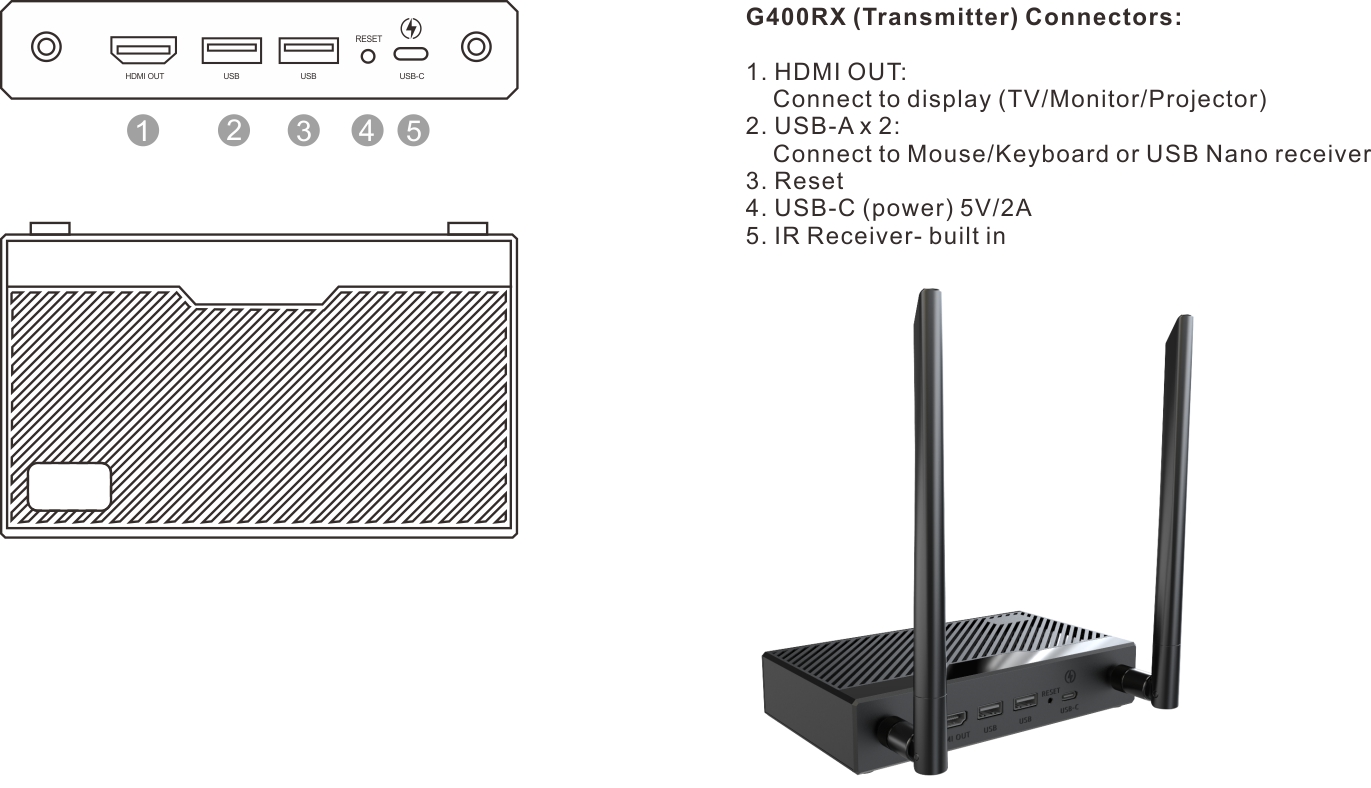

Connectors on G400RX (Receiver):

Connector

Description

USB-C (power)

DC 5V/2A (Power Consumption 7W)

HDMI out

Connect to display (TV/Monitor/Projector)

IR Receiver

Built-in

USB-A x 2

Connect to Mouse/Keyboard or USB Nano receiver


Temperature Range:

Operating

0°C to +40°C (+32°F to +104°F)

Storage:

-10°C to +60°C (+14°F to +140°F)


Humidity:

Operating

10% to 80% relative humidity

Storage

5% to 90% relative humidity


Package Contents

• G400 4K Wireless HDMI Extender with WiFi Antenna x 4 (5dB)

• IR emitter x 1

• 5V/2A USB power adapter x 2, USB-C cable x 2, HDMI (2.0) cable x 2

• Quick Start Guide


Package Information

Dimensions of Device
( L x W x H cm)

Weight (g)

Dimensions of Giftbox                         ( L x W x H cm)

Weight (g)


Dimensions of Carton

( L x W x H cm)

Q'TY / Carton

G.W.  (Kg)

15.5x7.7x2.2

624g



g





10

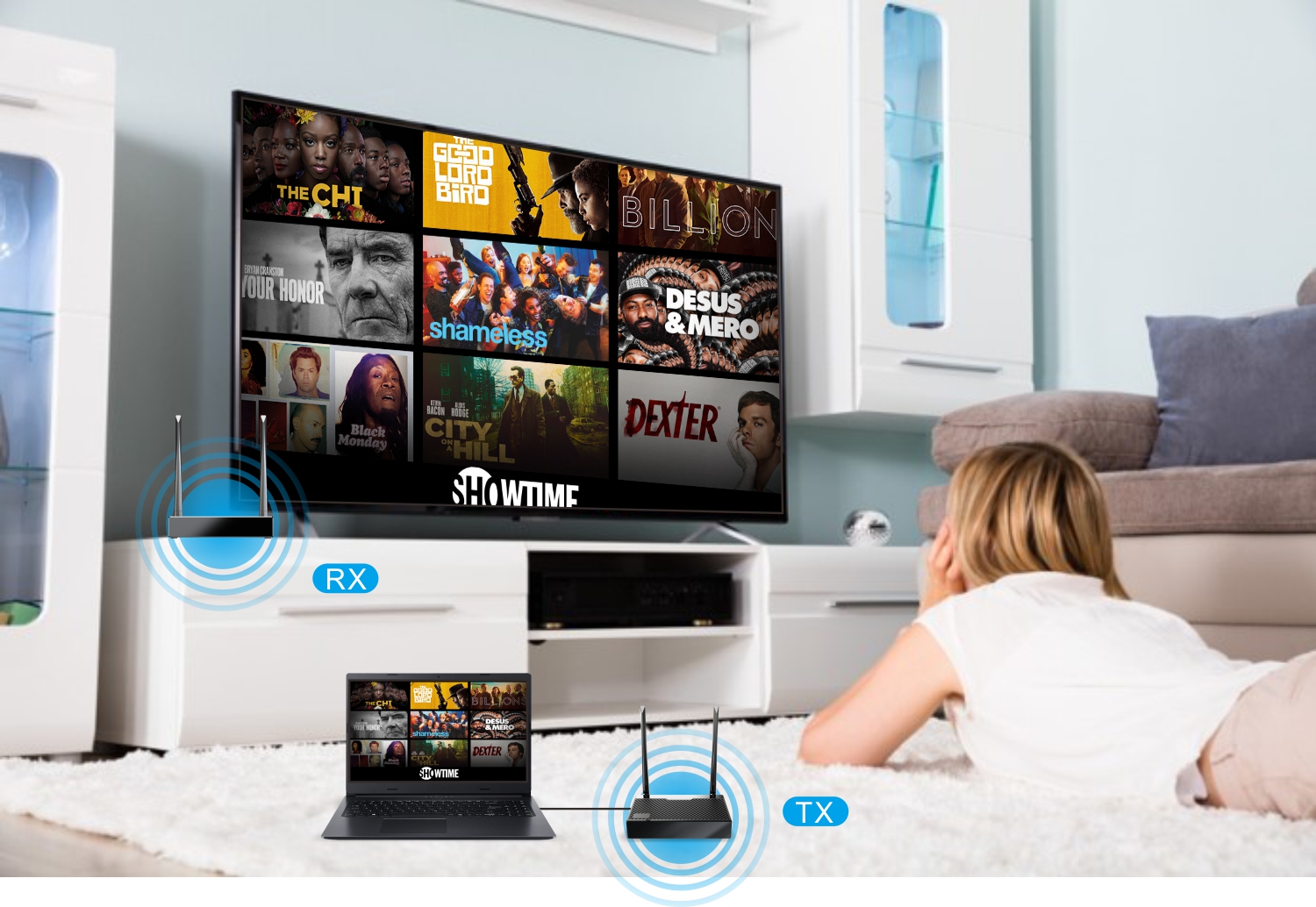

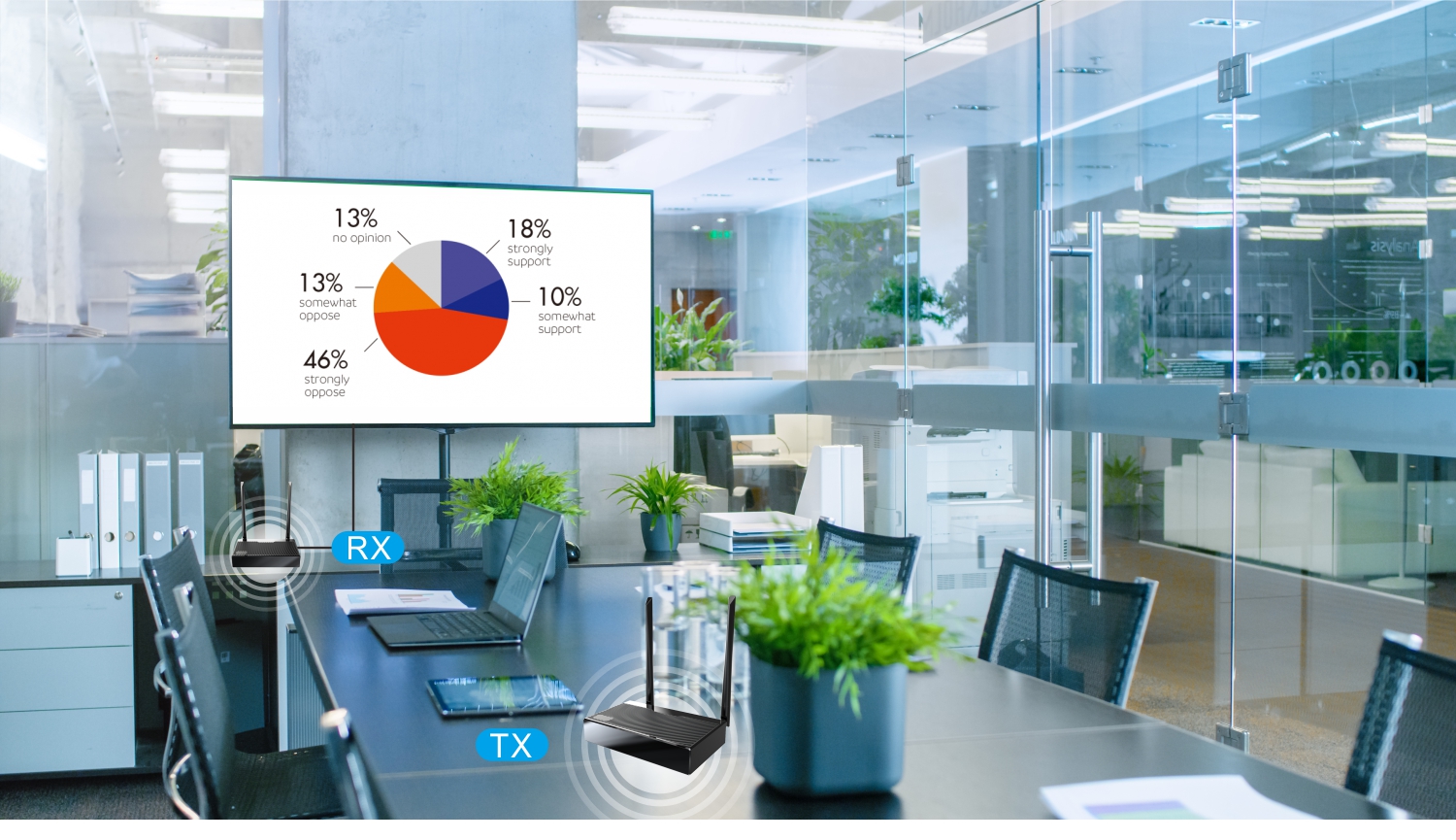

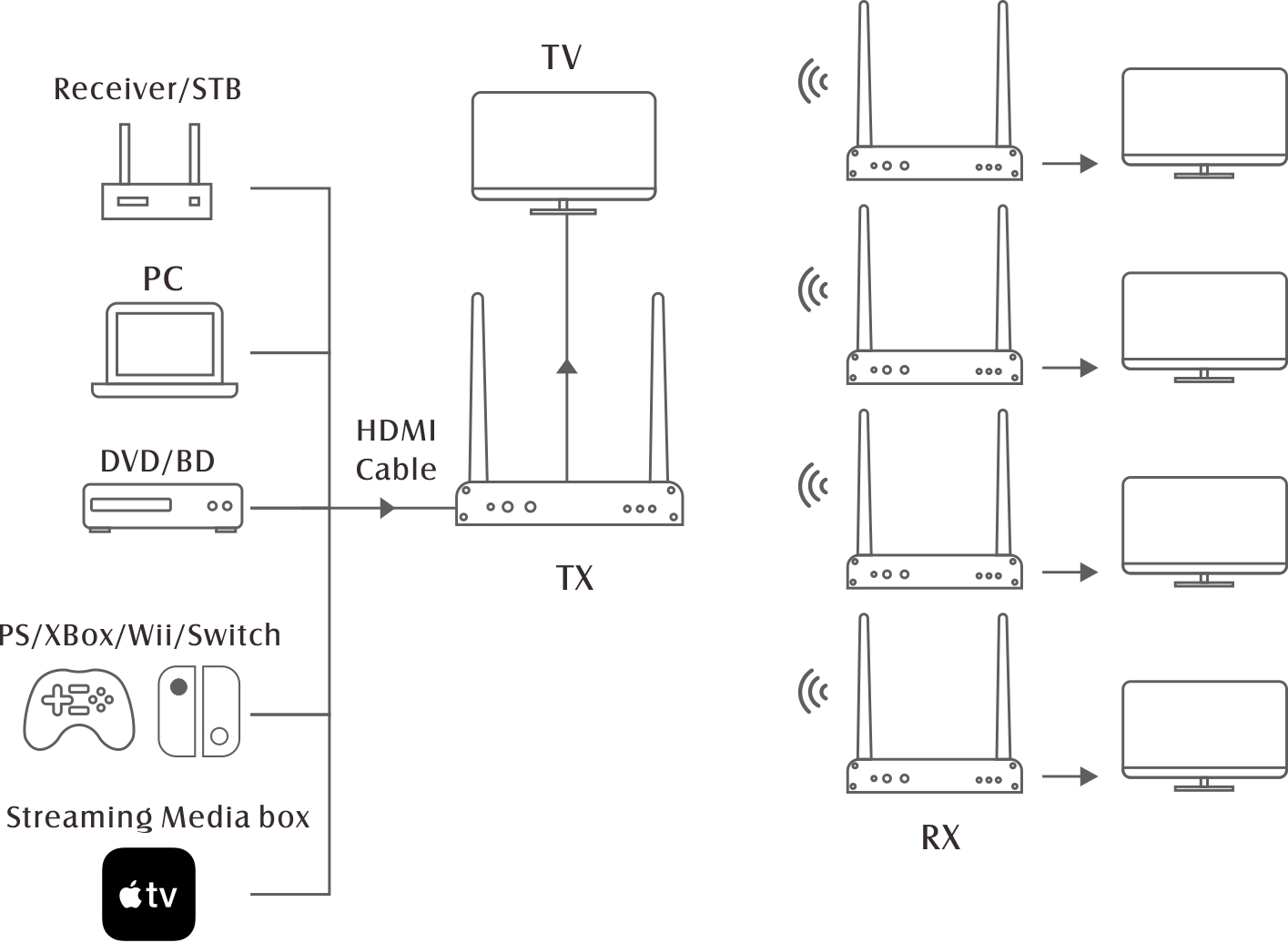

Application Scenario
