A500 Analog Video & Audio Recorder


Hardware & IO connectors:

•  CPU: Support hardware encode 480P MPEG4 (H.264)

•  AV IN: RCA Connectors (Yellow/Red/White)

•  S-Video IN: PAL 720*576i50

•  HDMI OUT: 1280*720p60

•  Output signals: HDMI, Speaker

•  Micro SD Card x 1: support up to 512G

•  USB Type A x 1: support USB flash pen drive (up to 512G)

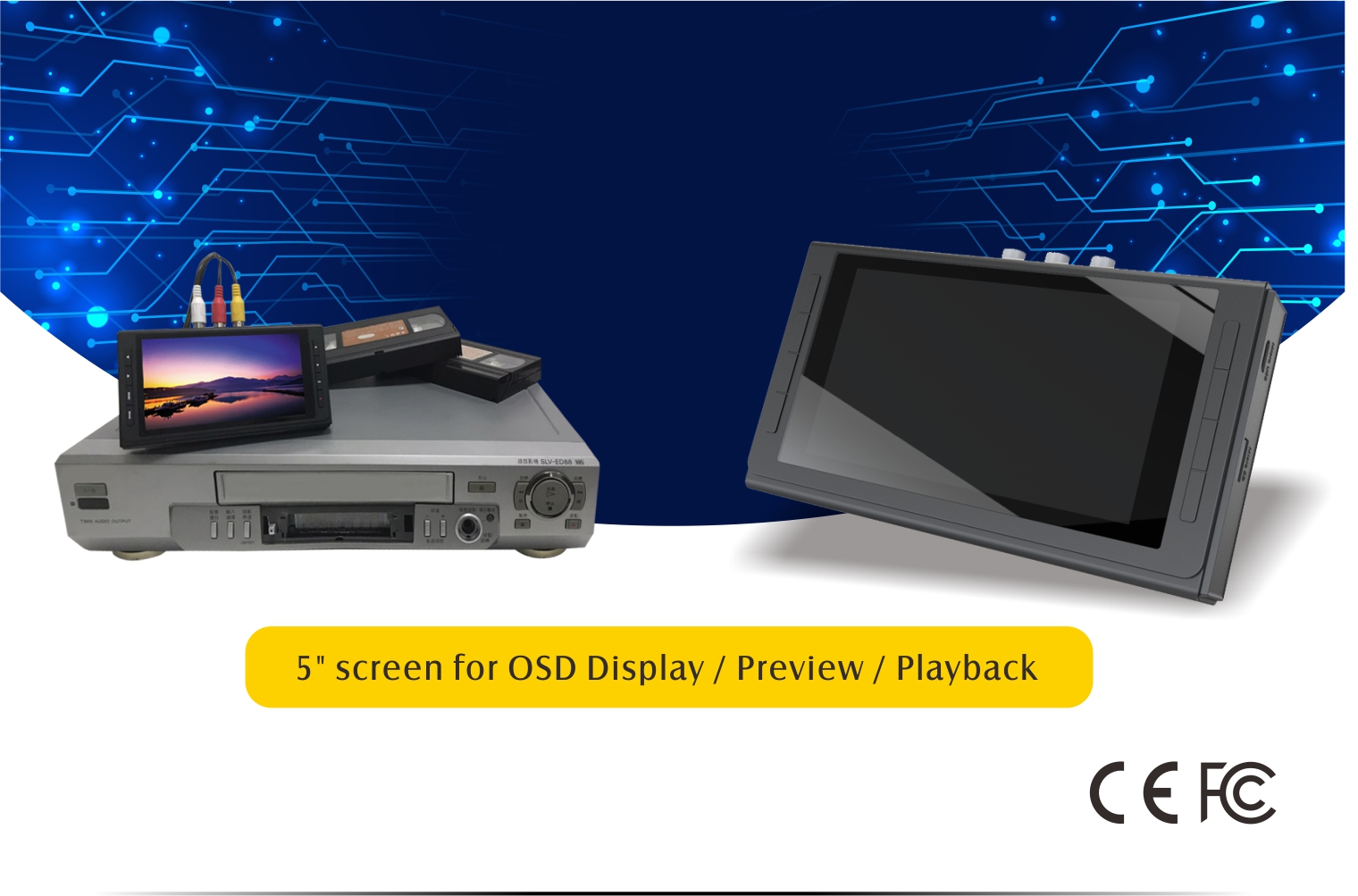

•  Display: 5.0” (854*480) panel for OSD Display / Preview / Playback

•  Built-in 1W speaker

•  H/W recorder up to 480P MPEG4 file (support 576i PAL)

•  Recording: NTSC 720x480 / 640x480 (60p), PAL 720x576 (50p)

•  Video Recording: MP4 (H.264)

•  Recording Bitrate: 4Mbps

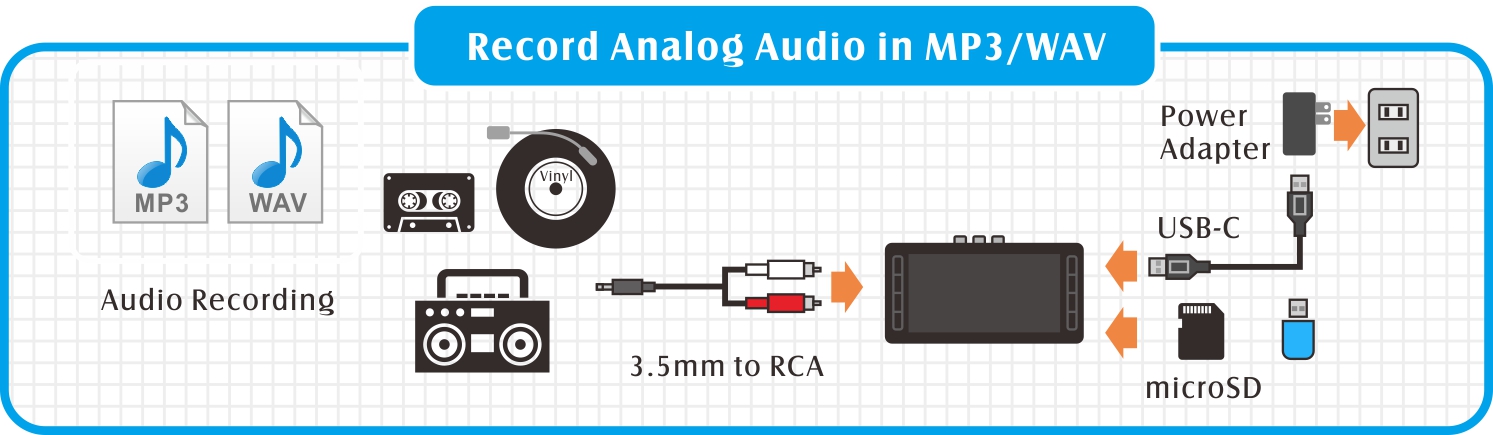

•  Audio Recording: MP3/WAV

•  Support storage format: FAT32/NTFS/exFAT/FAT

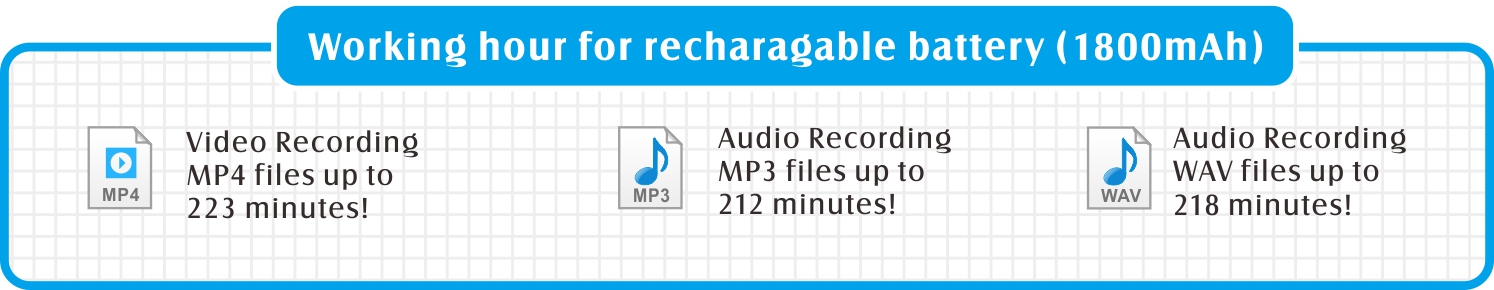

•  Battery capacity: 1800mAh

•  Power supply: USB-C 5V/2A


Software Feature:

•  OS: Linux

•  OSD (On Screen Display)

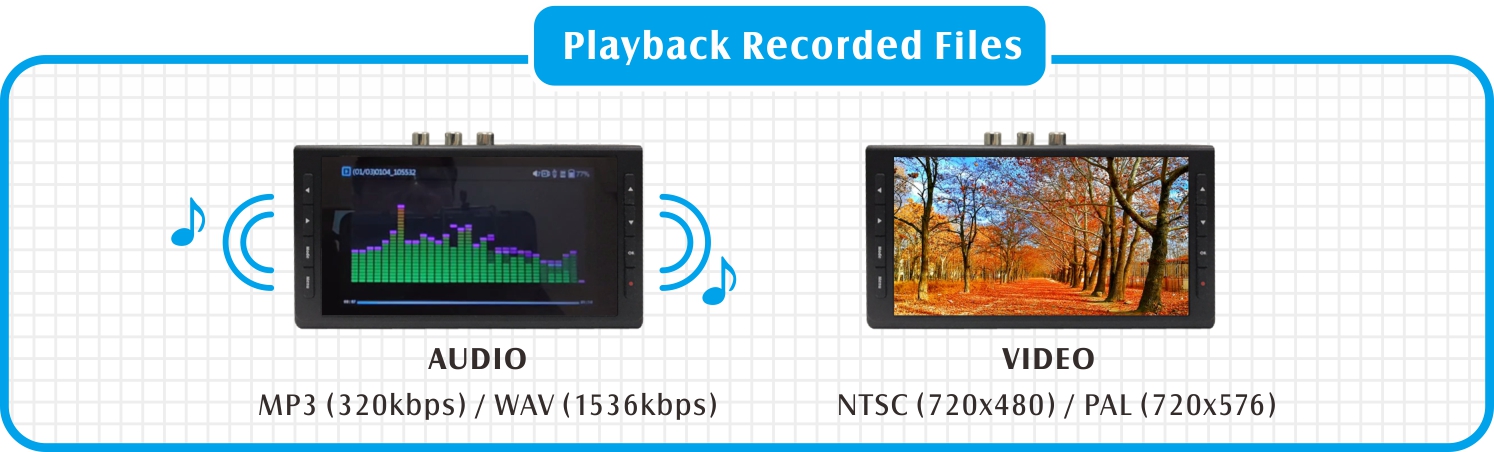

•  Play/Preview/Delete: Video/Picture on microSD/USB Flash Drive

•  Auto stop recording: 60/90/120/150/custom

•  Firmware upgrade by USB/Micro SD card

•  Max 4GB per file (FAT32), 32GB per file for NTFS/exFAT

•  Max Storage Capacity: 512GB (USB flash drive), 512GB (SD card), 2TB (USB HDD)


Product Feature:

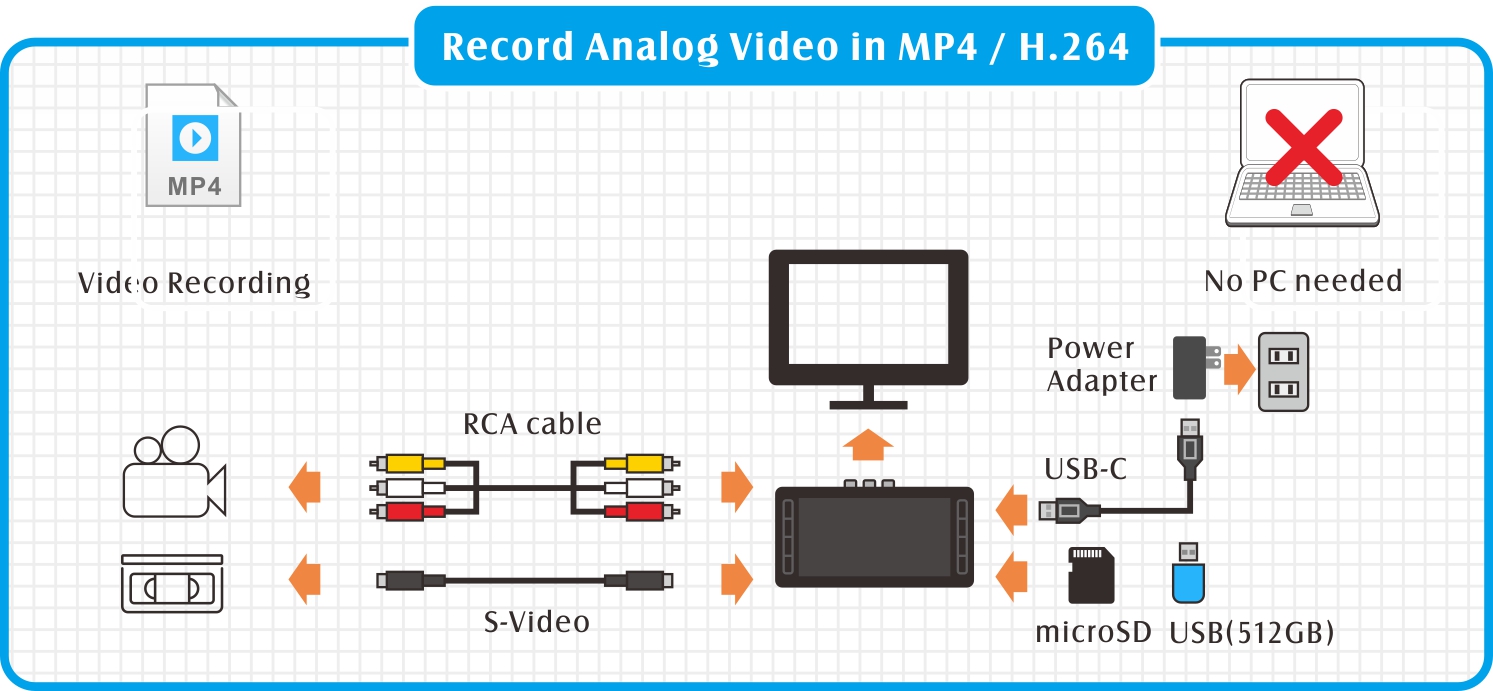

•  Capture any video & audio from RCA Video source to digital format

•  No computer, software or drivers required

•  Record from VCR’s, camcorders, DVD/DVR’s, gaming devices

•  Auto stop recording feature

•  Pause/ resume while recording

•  MP4 video recording format

•  MP3/WAV audio format


Package Contents

•  A500 video recorder

•  User manual

•  Power adapter: 5V@2A

•  Power cable x1

•  AV cable x1

•  Audio cable x1
