Key Features
• Support HDMI 2.0 4K60 pass-through and USB to Windows PC (OBS & XSplit)
(support input 1080i24hz,1080i50hz)
• One button to Record/Stop
• One button to switch recording in 720P60/1080P60
• MPEG4/H.264 hardware compression
• Record Resolution up to 1080p60/50/25, 720p60 & 576p
• Support external 2.0/3.0 hard drive and flash drive
(FAT32, exFAT, NTFS, GPT, MBR)
• Dual Mode Recording (Standalone & Windows PC)
• Support Microphone Audio Overlay
• Support all HDMI video source: PC, Receivers, DV, DVD, Game Consoles Xbox/Switch/PS4/PS5 etc.
Specification
Max Record Bit rate: 16Mbps
Max file size:
FAT32: 4GB per file
NTFS & exFAT (GPT & MBR): 16GB per file
Input Signal:
• HDMI 2.0
• MIC (Audio in)
Output Signal:
• HDMI 2.0
• Micro USB 2.0 (to Windows PC)
Loop Through Video Resolution | 720*480(30p/60p), 720*576(30p/60p) |
Capture Resolution | Up to 1080p@60fps |
Interface
• HDMI 2.0 input/output
• Microphone input
• USB 2.0/3.0 External hard drive (IDE and SATA /2.5,3.5/7200, 5400, 4200 )
• Support Hard Drive (6TB) and Flash Drive (512GB)
• Power 12V/1A input
Package Contents

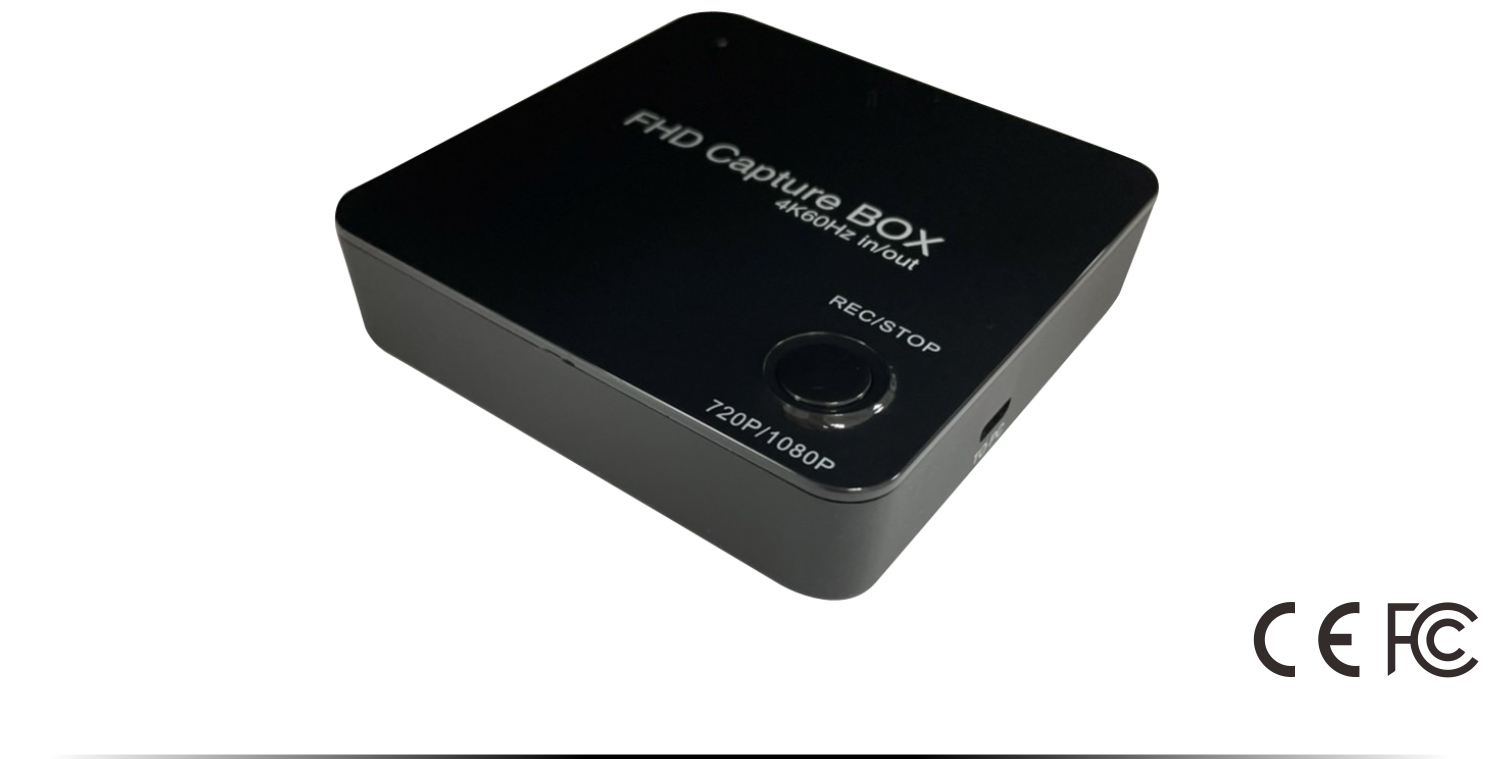

• C260 HD capture box
• Quick Start Guide
• HDMI cable
• Micro USB cable
• Adapter 12V/1A
