Key Features
• 4K UHD capture from DVD, OTT, Receiver, PC, PS and Xbox
• Dual mode design, HD recording on external USB storage (Standalone) or PC HDD
• Support FAT32, NTFS, MBR, exfat, GPT
• H.264 HD hardware encoding up to 1080P 60FPS
• Support HDD MAX 8T/ Flash Disk 512G
• Instant Playback & Pre-set schedule recording
• OSD control with multi-language
• HDMI pass-through without latency
• MMI CABLE （ CVBS,VGA,YPBPR）
• Miracast 1080p60 with APPLE PHONE, ANDROIDE PHONE , OR WINDOWS PC
• Recording data rate up to 18Mbits/sec in MP4 format
• Recording audio via integrated microphone input
• Snapshot via remote control (IR)
Specification
Bit rate:
• Bit rate Max 18Mbps, Min 4Mbps, default 10Mbps
Recording file size:
• Max 4GB or 16GB new recording file generated automatically after each 4GB or 16GB recorded
Video Resolution:
Input | 4K2K (3840x2160 30p), 1920x1080 (60p, 50p, 25p, 24p, 30p, 60i, 50i), 1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P), 1280x800 (60p), 1024x768 (60p), 720x480 (60p, 60i, 50i), 640x480(60p), 720x576 (50p) |
HDMI Output | 1920x1080 (60P) |
Recording | 1920x1080 (60p), 1280x720 (60p), 1024x768 (60p), 1280x800 (60p) |
Interface
• HDMI input/output
• CVBS / YPbPr / VGA / Microphone input / Line input / Line output
• USB 2.0 hard drive (IDE and SATA/2.5” & 3.5”/7200, 5400, 4200, SSD)
• USB 2.0 UVC output to PC 1080p60 (OBS/AMCAP/VLC)etc.
• Power 12V/1A input
Package Contents

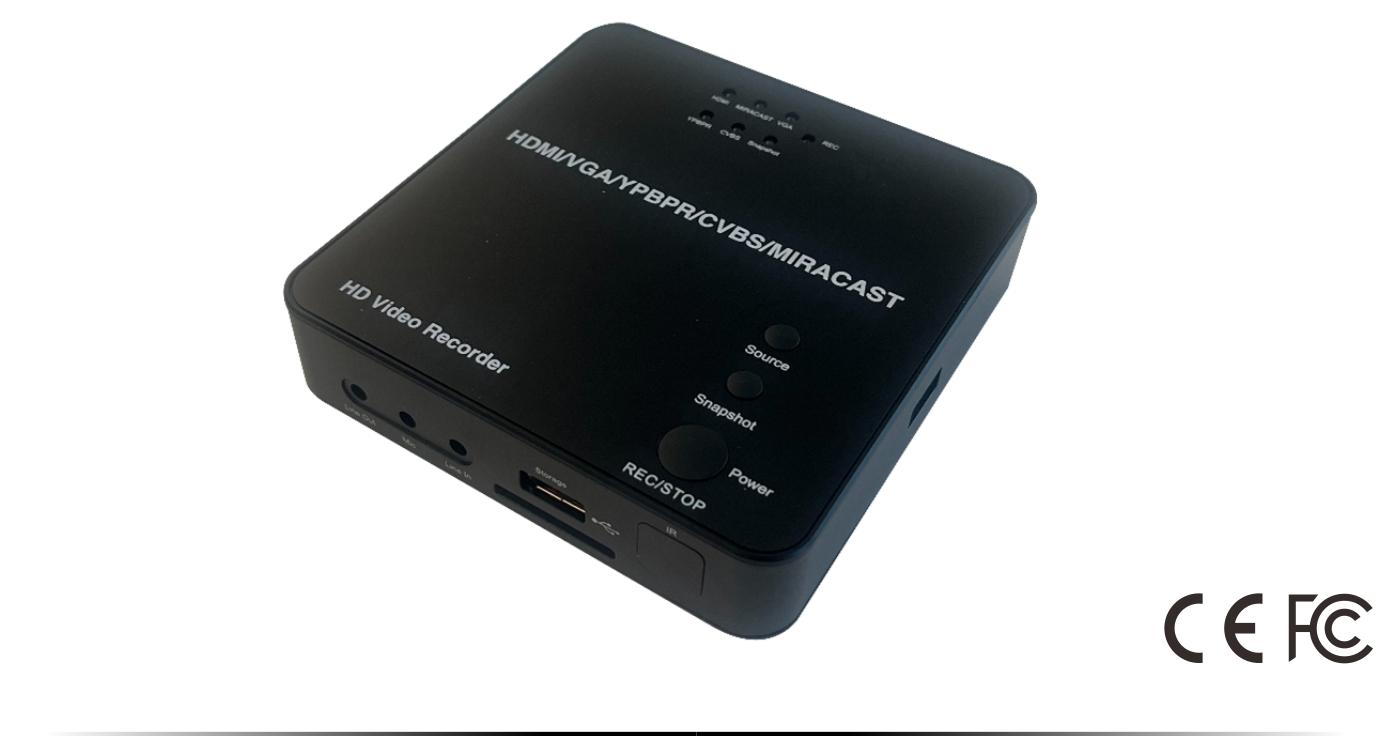

• K963W UHD capture box
• Remote control unit
• HDMI cable
• Micro USB to USB cable
• MMI cable (Component + Composite + VGA)
• Power Adapter 12V/1A
Package Information
Dimensions of Device ( L x W x H cm) | Weight (g) | Dimensions of Giftbox ( L x W x H cm) | Weight (g) |
11.6 x 11.2 x 2.5 |

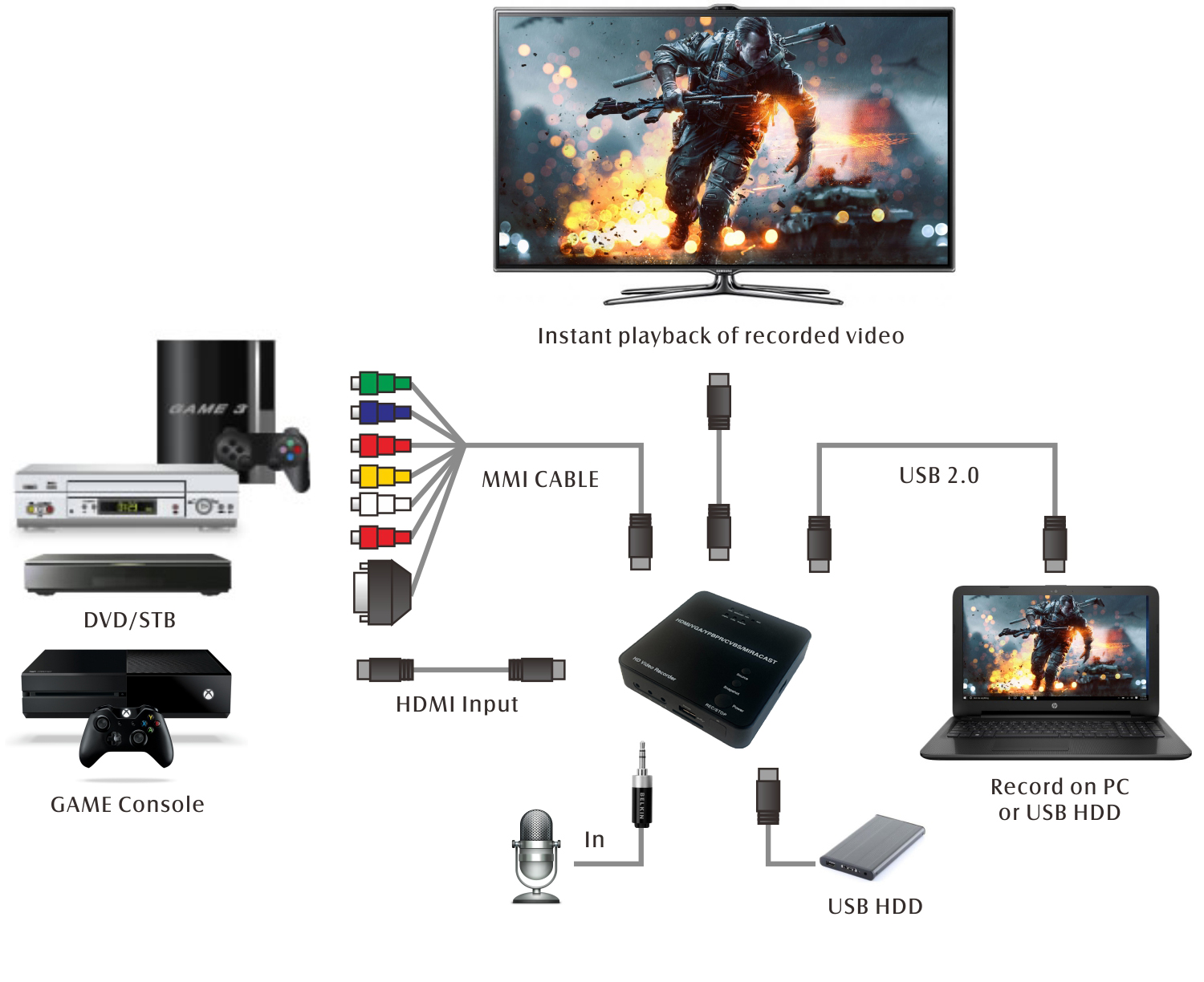

Connection Diagram
