  TeVii A420 1920 LCD TV Box
  • High Resolution 1920*1200 LCD TV Box
• Quick Setup; no PC required
• Support S-Video/Composite Input
• Auto Scanning & Memorize



The TeVii A420, an external TV tuner to turn your LCD monitor into a TV without connecting to any PC! The cutting-edge Progressive Scan technology and 3D-Motion Adaptive De-Interlace give sharper images while you enjoy Full-HD high-resolution display (1920 x 1200).

The Progressive Scan Output converts standard interlaced video by eliminating flicker, enhancing picture quality. By using the Progressive Scan technique, the video looks much more vivid and real.
Other stunning features include multi-lingual on screen display (OSD) with alpha-blending, and sleep function that automatically turns off TeVii A420 after a preset amount of time. It is compatible with all LCD/CRT monitors. You don’t want to miss TeVii A420 !

System Requirements
No PC required
Standard LCD,CRT,PDP display
Available analog TV signal (Aerial or Cable)











Key Features
• High resolution up to 1920*1200
• Support multiple display mode: 4:3(800*600/1024*768/1280*1024/1600*1200) 16:9(1366*768/1600*900) & 16:10(1440*900/1680*1050/1920*1200)
• Preview all programs in 4,9 or 16 pictures
• Picture in picture (PIP) function
• Full channel scan
• Support all video input (DVD,VCR,TV game or digital camera)
• Full function remote control
• On Screen Display




Performance Parameter

Physical Character

Length*Width* Height: 120x83x25 (mm)
Net Weight: 140 (g)
Total package weight: 435 (g)
Package size:
173x125x62 (mm)

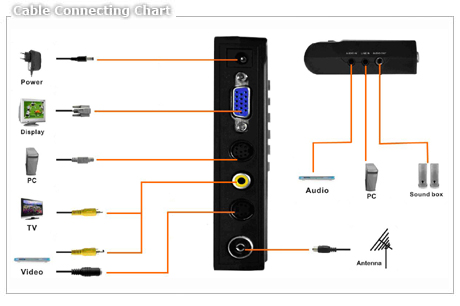

I/O Interface

input:
*POWER Connect 5V DC
*VGA IN 8-pin mini DIN
*LINE IN  3.5mm STEREO Audio port (connect with LINE OUT interface of sound card)
*AUDIO IN  L/R RCA jack(connect with DVD, VCR and etc)
*Antenna 75Ohm TV Antenna RF jack
*VIDEO IN 75 Ohm RCA jack
*S-VIDEO cable to 4-pin mini DIN
Output:
*VGA OUT 15-pin D-SUB
*AUDIO OUT 3.5mm STEREO Audio port
*VIDEO OUT 75 Ohm RCA jack

Voltage

5V DC

Working Temperature

0 to 50℃

Power Consumption

Less than 3.5W

Reserve Temperature

-20 to +60℃

Current

Working : 0.65A
Standby: 0.35A

RF Reception Range

PAL System:
48.25 – 863.25 MHz
NTSC System
55.25 – 801.25 MHz

TV System Support

PAL BG/DK/I or NTSC or SECAM BG/DK or PAL M/N
