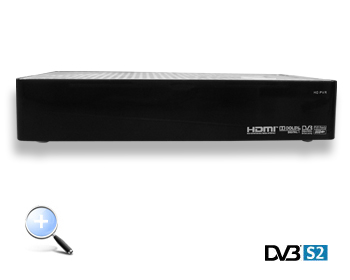

TeVii B610 HD Satellite Receiver |
|
|
| |
• eCos Operating System
• Ethernet support
• 1 x HDMI 1.3 output
• Component output
• CA slot |
 |
|
| |
|
|
| |
|
|
| |
Features:
• eCos Operating System
• Fully compliant MPEG-4 H.264/AVC Main Profile Level3 &High
Profile Level4.1
• Fully compliant MPEG-2 MP@HL & MP@ML
• Fully compliant MPEG-1 Layer I & II & III, Dolby
Digital Audio(AC3)
• SCPC & MCPC receivable from C/Ku band satellites
• Multiple LNB-Switching control (DiSEqC1.0/1.1/unicable/1.2/1.3USALS)
• CCcam / Newcamd / MGCamd / Avatar Cam ready through Ethernet
• NIT search supported
• Support MHEG-5
• HDMI 1.3 digital output & CVBS Output
Multilingual support on screen menu (OSD)
English, French, Deutsch, Italian, Spanish, Swedish, Danish,
Greece, Thai Portuguese, Finland, Holland, Turkish, Czech,
Russian, Polish, Arabic, Hungarian
• Teletext and subtitle out through OSD
• Support Electronic Program Guide(EPG) for 7 days
• Multimedia Video/Audio/Photo files playback through USB
storage
• Support multi-lingual DVB subtitle and teletext
• Automatic and manual channel scan options
• Parent lock
• Support PVR through USB HDD
• Blind channel scan
• Multiple display mode:
1080i_50/1080i_60/720p_50/720p_60/570p/576i/480p/480i;
• MPEG-2 / H.264 Hardware decoding
• Videotext Decoder
• CA 1x slot
• Back Plug for Flat Panel (LCD/LED) TV
• Extended IR receiver for Remote Control
|
|
| |
|
|
| |
| DVB-S2 |
Input Frequency:950~2150MHz
Loop Out Frequency:950~2150MHz
Input Level:-65~-25dBm
Input Impedance:75ohm¸
LNB Power: Auto/14v/18v/OFF, Imax = 500mA |
Video decoder
|
Video Compression MPEG-2 and MPEG-1,
H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device |
| Audio decoder
|
Audio decoder Audio Compression MPEG-1&MPEG-2
Layer I &II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32/44.1/48/16/22.05/24 kHz |
Output digital
|
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz |
Video parameter
|
Input Level FBAS 1 Vss +/- 0.3 dB on
75 Ohm
Teletext filter in conformity with ETS 300 472Standard |
RS-232
|
Typ RS232 bidirectional
Bit rate 115,2 kBit/s max.
Function: Update of Firmware |
Ethernet
|
10/100 MBit compatible interface |
USB
|
1 x USB 2.0 |
LNB power
|
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at
400mA
LNB Voltage horizontal<20V no load,>17,3V at 400mA |
DiSEqC
|
DiSEqC 1.0/1.1/unicable/1.2 SAT POSITION
/ SAT
DiSEqC - Motor Control |
Physical specification
|
Ambient Temperature +15 °C...+35 °C
Humidity < 80% Weight: 0.8 kg without HDD |
| Power Adapter |
AC input :100-240VAC 50/60Hz
DC output : 12V / 1.5A |
|
|
| |
|
|
| |
|
|
|
