System Requirements
Microsoft Windows XP / Vista / 7
Pentium 4 2.0GHz (2.4GHz Core 2 Duo recommended for HDTV)
256MB RAM (1GB recommended for HDTV)
Graphic card VGA 32MB (128MB recommended for HDTV)
AC ‘97 compatible sound card / chipset for audio playback
Microsoft Direct X 9.0c or above
CD or DVD ROM drive (for software installation)
One free USB 2.0 port
UHF/VHF terrestrial TV antenna
Available terrestrial signal in your region

Software Key Features

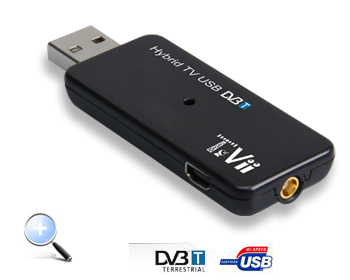

Hybrid DVB-T and analog USB 2.0 stick (Bus power)
Free to air DVB-T (TV & Radio) reception (6/7/8MHz)
HDTV support (MPEG 2 & AVC/H.264)
Support FM radio receiving
Worldwide analog TV reception (NTSC/PAL/SECAM)
Supports DVB-T Teletext & EPG and analog Teletext
Instant (DVR) & Pre-scheduled recording (in DVD Quality)
Time-Shifting
Channels auto scan & multi-channel preview
Bundle software TotalMedia 3.5
Remote control support
Compatible with Windows Media Center

Tuner
Input Terminal: 75 Ohm MCX Connector
Receiving frequency: TV48.25 ~ 863.25 (VHF/UHF) , FM: 88-108 MHz

I/O connector
TV cable/antenna in
Composite/S-Video cable in

DVB-T Parameters
Carrier type: 2K or 8K
Guard interval: 1/4, 1/8, 1/16 or 1/32
Code rate: 1/2, 2/3, 3/4, 5/6 or 7/8
Modulation: QPSK, 16QAM or 64QAM
Channel Bandwidth: 6MHz, 7MHz, 8MHz

Package Includes
H610 Hybrid USB
Remote control
Portable DVB-T antenna
USB cable
Mini RF to IEC connector converter
Composite/S-Video cable
Installation CD
Quick Installation Guide
