M500 HD Media
Player |
|
| |
• Full HD(1080P) output
• Twin USB 2.0 Port
• Support HDMI
• Friendly interface
• Support 7.1 audio channels
|
 |
| |
HD Media Player
is a Networking Multimedia Player to let you enjoy HDTV (up
to 1080p) for top quality home entertainment. It can playback
the Multimedia in the external storage device through USB
interface or through Networking. It is easy to connect to
the TV and simple to use.
|
| |
|
| |
 |
| |
|
| |
Key Features
Movie/Music/Photo multiple media formats playback on TV
HD(1080P) output
Photo slide show with background music
User friendly on screen display and operation
Network supports SAMBA client, UPnP
HDMI output supported
SPDIF Audio output supported |
| |
|
| |

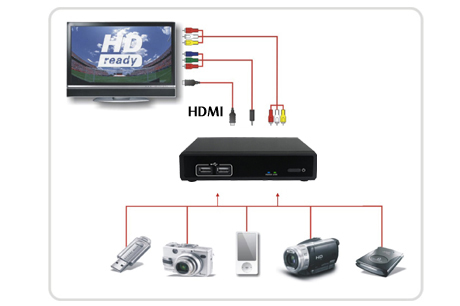

I/O Interface
Composite Audio / Video RCA Jack
YPbPr Phone Jack
HDMI Port
SPDIF Optical
USB 2.0 for external HDD, Pen driver, DC , DV…etc
Ethernet : RJ45 |
| |
|
| |
Playback
formats
Video :
MPEG-1(DAT / MPG / MPEG)
MPEG-2(MPG / MPEG / VOB / ISO / IFO / TS / TP) M2TS / M2T
MPEG-4(MP4 / AVI / MOV)
Divx 3/4/5/6, Xvid(AVI / MKV)
H.264 AVC(TS / AVI / MKV / MOV) / M2TS
VC-1(TS / AVI / MKV / WMV) / M2TS
WMV9 (WMV)
Real Video 8/9/10 (RM / RMVB)
FLV (FLV)
Audio :
Dolby Digital AC3, DTS, MPEG-1 Layer 1/2/3, MPEG-II 1/2 Layer,
Real Audio, MPEG-4 HEAACv2, LPCM
Support 7.1 audio channels
Subtitle :
Srt, sub, smi, *idx+sub, ssa, DVD subtitle, DivX Subtitle
Music :
MP3, WMA, WAV, ASF, AAC, OGG Vorbis, FLAC, iTune M4A(AAC), M3U(Playlist)
Photo :
JPG, BMP, PNG, GIF, TIF, TIFF
|
| |
|
| |
Specification
Power input : DC12V / 1.5A
Power consumption : Operation : 5.5W, Stand by : 0.5W
Dimensions: 101*146*30.6mm (L*W*H)
Operation temperature : 0~40℃ |
| |
|
|
