M530 HD Media Player
Experience the Cinema-grade Enjoyment in Your Living Room

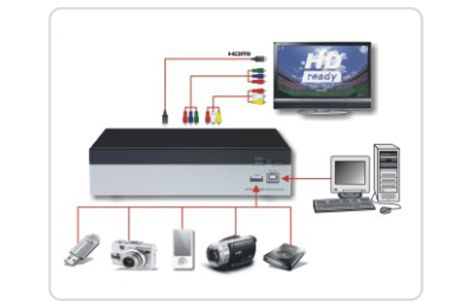

M530 is a powerful home media center which truly decodes, playback and outputs High Definition 1080p videos through HDMI interface. M530 is able to play the HD MPEG2, HD VC-1, HD AVC/H.264 movies from internal hard drive or external USB devices to HDTV screen. The advanced Network function allows you to browse the video file from your PC or NAS in your study room and play it on TV in the living room. The player also support NAS function with build in Samba Server, which is able to share the whole hard drive and USB drive to the network, so you can easily access you media files via your computer.

M530 is compatible with X600 USB 802.11n wireless Dongle. Just plug this dougle into USB port of M530 to enable the wireless function, so you can easily enjoy playback your movie from your computer or NAS server wirelessly.

Features

• Decode and output High Definition 1080p video and Photo.
• Support internal SATA hard drive up to 2.0TB
• Support Mainstream formats of HD video including MPEG-2, VC-1, H.264/AVC and RMVB HD.
• Within the next generation interface - HDMI 1.3 output.
• Ethernet port supports Network player function.
• NAS function share the hard drive and USB device to the network
• High performance video playback. Experience fluent playback control like Zoom out/in, Pan the picture, Fast Forward, Fast Reverse, Slow-motion.
• Fully supports the subtitle format. Dynamically change the subtitle display by remote control.
• Photo playback via HD. Supports Up to 4 mega-pixel photo files, 16X Zoom in, 3-direction rotation.
• Slide show mode with 8 kinds of transition effect. Background music playback is supported.
• Rich types of music file. The playback function includes Fast Forward, Fast Reverse, Repeat, Shuffle and Shuffle Repeat.
• Within USB 2.0 port, plug-and-play the USB Flash Drive, USB Mobile Hard Disk Drive , USB Card Reader, USB DVD-ROM, USB Wi-Fi Dongle (X600).
• Supports all most all formats of HDD and has the most interchangeability.
• Easy to use and intuitive control. Change to setup menu at any time even in media playing to provide the fluent control.

Package Contents

• M530 HD Media Player
• Power adapter
• Pemote control unit
• AAA batteries
• YPbPr cable
• RCA cable
• User's manual
• Quick installation guide

Specification

• Product name: M530
• HDD Support: 3.5" SATA hard drive up to 2.0TB
• Disc format: FAT16/FAT32/NTFS (Read only)/UDF/EXT3
• Subtitle: Chinese Traditional/Chinese Simplified/UTF8
• Resolution: 1080p
• Aspect ratio: Pan Scan 4:3 / Letterbox 4:3 /16:9
• Interface: Video: CVBS YPbPr HDMI 1.3
• Audio: AUDIO L/R S/PDIF, TOSLINK
• USB: USB 2.0, 5V-1000mA
• USB DVD-ROM: DVD Disc playback
• USB Wireless dongle: X600 802.11n dongle, SAMBA client, UPnP
• MOVIE Video: MPEG-1 (DAT / MPG / MPEG); MPEG-2 (MPG / MPEG / VOB / ISO / IFO / TS / TP) MPEG-4 (MP4 / AVI / MOV); DivX 3/4/5/6, Xvid (AVI / MKV) H.264 AVC (TS / AVI / MKV / MOV) VC-1 (TS / AVI / MKV / WMV); WMV 9 (WMV); Real Video HD 8/9/10 (RM / RMVB); FLV (FLV)
• MOVIE Audio: Dolby Digital AC3, DTS, MPEG-I Layer 1/2/3, MPEG-II Layer 1/2 multichannel, Real Audio, MPEG-4 HE AACv2, LPCM; Support 7.1 audio channels
• MOVIE Subtitle: srt, sub, smi, *idx+sub, ssa, DVD subtitle, DivX subtitle
• MUSIC: MP3, WMA, WAV, ASF, AAC, OGG Vorbis, FLAC, iTune, M4A(AAC), M3U(Playlist)
• PHOTO: JPG(40-mega pixel without limitation of resolution, Baseline), BMP, PNG, GIF, TIF, TIFF
• Power rating: 12V 2A
• Size: 101 x 146 x 30.6 mm (L x W x H)
• Operation temperature: 40 Celsius

*When playing the HD video, the display position of the subtitle could be in the higher part of the TV picture. Only the subtitle format idx + sub can maintain the same position as playing
in the SD video. We recommend using this kind of subtitle format.
