M600 HD Media Player
Watch, Record and Play in the comfort of your living room

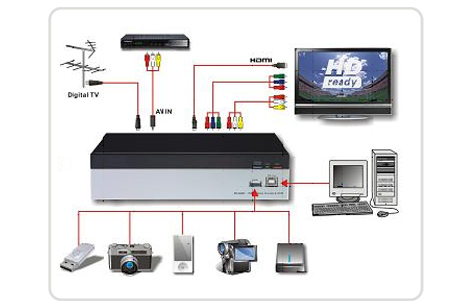

M600 is an ultimate HD 1080p media player, DTV receiver and HD video recorder for your digital home. It’s an easy way to combine TV turner, TV recording and HD playback of your digital video and audio files. M600 is able to truly decodes, playback and outputs High Definition 1080p videos through HDMI interface. It supports vast range of media formats including HD MPEG2, HD VC-1, HD AVC/H.264, Divx and RMVB, which stored in internal hard drive or external USB devices. The advanced Network function allows you to browse the video file from your PC or NAS in your study room and play it on TV in the living room. It also supports NAS with build in Samba Server, which is able to share the whole hard drive and USB drive to the network, so you can easily access media files via your computer.

M600 is compatible with USB 802.11n wireless dongle. Just plug this dongle into USB port of M600 to enable the wireless function, so you can easily enjoy playback movie from your computer or NAS server wirelessly.

Features

• • Decode and output High Definition 1080p video and Photo.
  • Support Mainstream formats of HD video including MPEG-2, VC-1, H.264/AVC and RMVB HD.
  • Watch DVB-T program with Pause Live TV and timer recording function.
  • Within the next generation interface - HDMI 1.3 output.
  • Ethernet port supports Network player function.
  • High performance video playback. Experience fluent playback control like Zoom out/in, Pan the picture, Fast Forward, Fast Reverse, Slow-motion.
  • Fully supports the subtitle format. Dynamically change the subtitle display by remote control.
  • Photo playback via HD. Supports Up to 40 mega-pixel photo files, 16X Zoom in, 3-direction rotation.
  • Slide show mode with 8 different transition effects. Background music playback is supported.
  • Rich types of music file. The playback function includes Fast Forward, Fast Reverse, Repeat, Shuffle and Shuffle Repeat.
  • Within USB 2.0 port, plug-and-play the USB Flash Drive, USB Mobile Hard Disk Drive , USB Card Reader, USB DVD-ROM, USB Wi-Fi Dongle.
  • Supports Internal SATA or SATA2 HDD
  • Easy to use and intuitive control. Change to setup menu at any time even in media playing to provide the fluent control.

Package Contents

• • M600 HD Media Player
  • Power adapter
  • Remote control unit
  • AAA batteries
  • YPbPr cable
  • RCA cable
  • User's manual
  • Quick installation guide

Specification

• • Model name: M600
  • Disc format: FAT16/FAT32/NTFS/UDF
  • Subtitle: Chinese Traditional/Chinese Simplified/UTF8/Europe
  • Resolution: 1080p HD decoding & output, upscaling, CVBS & YPbPr & HDMI output simultaneously
  • Aspect ratio: Pan Scan 4:3 / Letterbox 4:3 /16:9
  • Video Interface: CVBS composite RCA Video, YPbPr RCA, HDMI 1.3
  • Analog Audio: Analog: AUDIO L/R RCA
  • Digital Audio: SPDIF, TOSLINK & Coaxial, HDMI
  • USB: USB 2.0, 5V-1000mA, For USB External HDD, USB Flash Disk, USB DVD-ROM
  • SATA II: For internal 3.5" SATA II HDD x 1
  • Ethernet: RJ-45 10/100 Mbps Ethernet port
  • Optional Wi-Fi dongle: USB 802.11n Wi-Fi dongle
  • Analog Video Record: NTSC/PAL
  • Record quality: HD, HQ, SP, LP, EP, SLP
  • DTV Support: DVB-T, DTV EPG
  • Record Function: DTV EPG / Timer Recording, Pause Live TV, one-touch recording
  • Power rating: DC12V / 2A
  • Power consumption: Operation: 11.4 W (USB device/HDD consumption not included)
  • Standby: 0.6 W
  • Size: 206 x 142.5 x 48 mm (L x W x H)
  • Operation temperature: 0-40 Celsius
