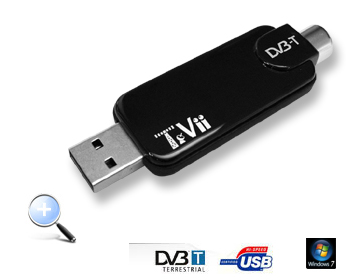

TeVii T690 DVB-T USB Stick
The TeVii T690 DVB-T USB 2.0 Stick opens up a world of new possibilities. No matter that you want to watch the latest stock information at work, a feature film in your living room or a soccer game with friends on your backyard. All of these now become possible. The TeVii T690 is as small as a USB stick and comes with everything you need for mobile DVB-T reception.

Regardless of where you are, your TV card is there with you. You don't ever have to go without the accustomed TV viewing comfort, as a matching remote control is also included. Using bundled Arcsoft Total Media software, you can also use TeVii T690 as a digital video recorder for recording digital terrestrial TV programs with full HDTV support (MPEG2 & AVC/H.264). The electronic program guide (EPG) helps you accurately navigate through the large number of stations and activate your recording timer. The integrated videotext function makes sure you're excellently informed even beyond the TV program.

Finished recordings can be burn on a CD or DVD with just a few mouse clicks using the included software, enabling you to build up your own film archive. And if you have to interrupt a program for some reason, the TimeShifting function saves the part you miss on the hard disk. That means you can simply resume viewing later at the desired point.

Please ensure you can receive the Digital Terrestrial Television (DVB-T, Freeview) service in your region. The TeVii T690 requires that you use a high-gain roof aerial to enable and enjoy reliable Digital Television reception throughout the UK. The portable aerial that we provide should only be used and relied on in areas abroad where the Digital TV signal reception is optimal.

System Requirements
Microsoft Windows XP/Vista
Pentium 4 2.0GHz (2.4GHz Core 2 Duo recommended for HDTV)
256MB RAM (1GB recommended for HDTV)
VGA card at least 32MB Memory (128MB recommended for HDTV)
AC'97 compatible sound card / chipset for audio playback
Microsoft Direct X9.0 or above
One free USB 2.0 Port
CD or DVD-ROM drive (for software installation)
VHF/UHF Terrestrial TV Antenna
Available Terrestrial signal in your region

Software Key Features
Free to air DVB-T (TV & Radio) reception (6/7/8 MHz)
HDTV support (MPEG 2 & AVC/H.264)
Support FM radio receiving
Support DAB radio receiving
Supports DVB-T Teletext & EPG and analog Teletext
Instant (DVR) & Pre-scheduled TV recording
Channels auto scan & multi-channel preview
Bundle software TotalMedia 3.5
Time-shifting
Remote control support
Compatible with Windows Media Center

Tuner
Input Terminal: 75 Ohm (UHF / VHF) TV antenna
Receiving frequency: 51 ~ 858 MHz tuning range
Bandwidth: 6/7/8 MHz

DVB-T Parameters
Carrier type: 2K or 8K
Guard interval: 1/4, 1/8, 1/16 or 1/32
Code rate: 1/2, 2/3, 3/4, 5/6 or 7/8
Modulation: QPSK, 16QAM or 64QAM
Channel Bandwidth: 6MHz, 7MHz, 8MHz

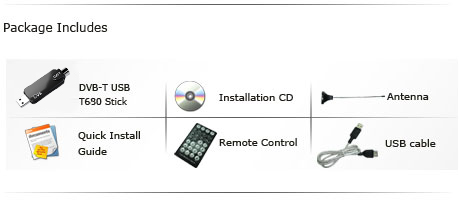

Package Includes
T690 DVB-T USB stick
Remote control
Portable DVB-T antenna
USB cable
Installation CD
Quick Installation Guide

System Requirements
Microsoft Windows XP / Vista / 7
Pentium 4 2.0GHz (2.4GHz Core 2 Duo recommended for HDTV)
256MB RAM (1GB recommended for HDTV)
VGA card at least 32MB Memory (128MB recommended for HDTV)
AC ‘97 compatible sound card / chipset for audio playback
Microsoft Direct X9.0 or above
One free USB 2.0 Port
CD or DVD-ROM drive (for software installation)
VHF/UHF terrestrial TV antenna
Available terrestrial signal in your region
