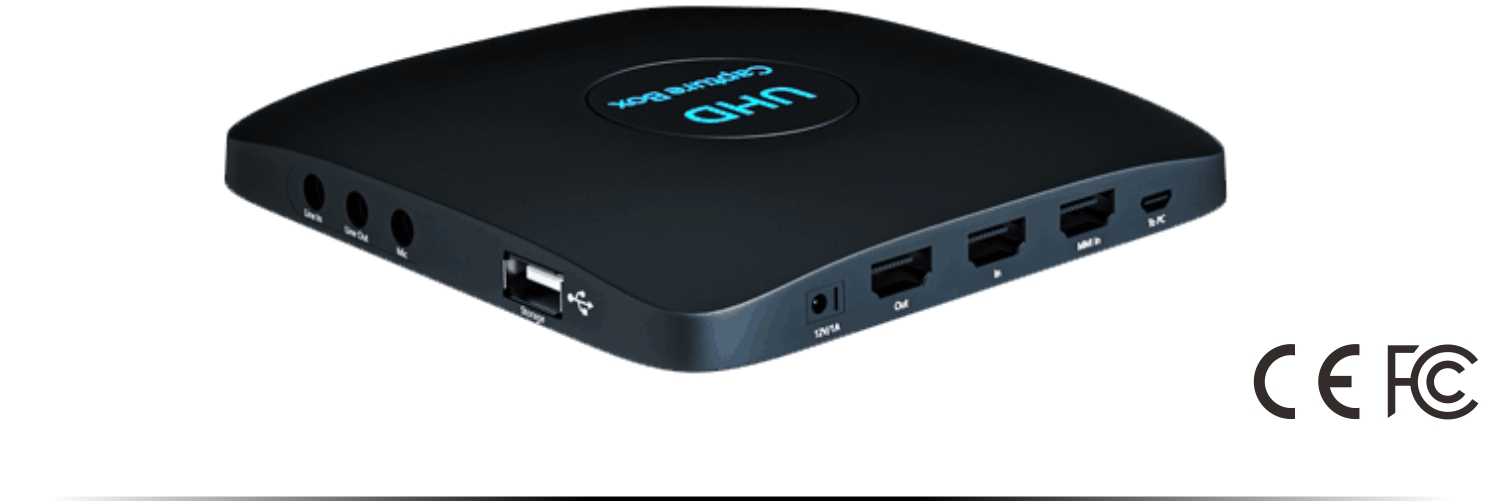

K960D UHD PVR

Key Features

• 4K UHD capture from DVD, OTT, Receiver, PC, PS and Xbox

• Dual mode design, HD recording on external USB storage (Standalone) or PC HDD

• Support FAT32, NTFS, MBR, exfat, GPT

• H.264 HD hardware encoding up to 1080P 60FPS

• Support HDD MAX 8T/ Flash Disk 512G

• Instant Playback & Pre-set schedule recording

• OSD control with multi-language

• HDMI pass-through without latency

• Recording data rate up to 18Mbits/sec in MP4 format

• Recording audio via integrated microphone input

• Snapshot via remote control (IR)


Specification

Bit rate:

• Bit rate Max 18Mbps, Min 4Mbps, default 10Mbps



Recording file size:

• Max 4GB or 16GB new recording file generated automatically after each 4GB or 16GB recorded



Video Resolution:


Input

4K2K (3840x2160 30p), 1920x1080 (60p, 50p, 25p, 24p,

30p, 60i, 50i), 1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P), 1280x800 (60p), 1024x768 (60p),

720x480 (60p, 60i, 50i), 640x480(60p), 720x576 (50p)
HDMI Output
1920x1080 (60P)
Recording
1920x1080 (60p), 1280x720 (60p), 1024x768 (60p), 1280x800 (60p)



Interface

• HDMI input/output

• CVBS / YPbPr / VGA / Microphone input / Line input / Line output

• USB 2.0 hard drive (IDE and SATA/2.5” & 3.5”/7200, 5400, 4200, SSD)

• USB 2.0 UVC output to PC 1080p60 (OBS/AMCAP/VLC)etc.

• Power 12V/1A input


Package Contents

• K960D UHD capture box

• Remote control unit

• HDMI cable

• Micro USB to USB cable

• MMI cable (Component + Composite + VGA)

• Power Adapter 12V/1A



Package Information


Dimensions of Device
( L x W x H cm)
Weight (g)
Dimensions of Giftbox   ( L x W x H cm)
Weight (g)
11 x 11 x 1.5
190g
22.5 x 16 x 5.5
680g

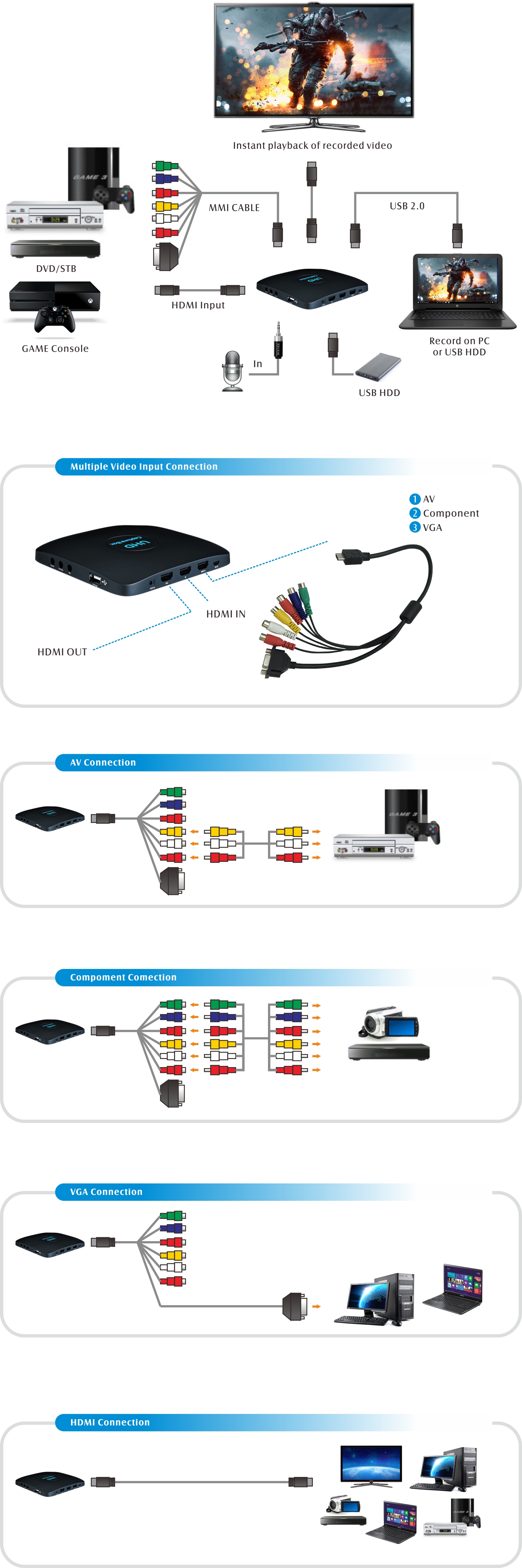

Connection Diagram
