G100 ClickCast

Hardware & IO connectors:

CPU: H.264 hardware encoder IC; support HDMI 1080P/60fps output

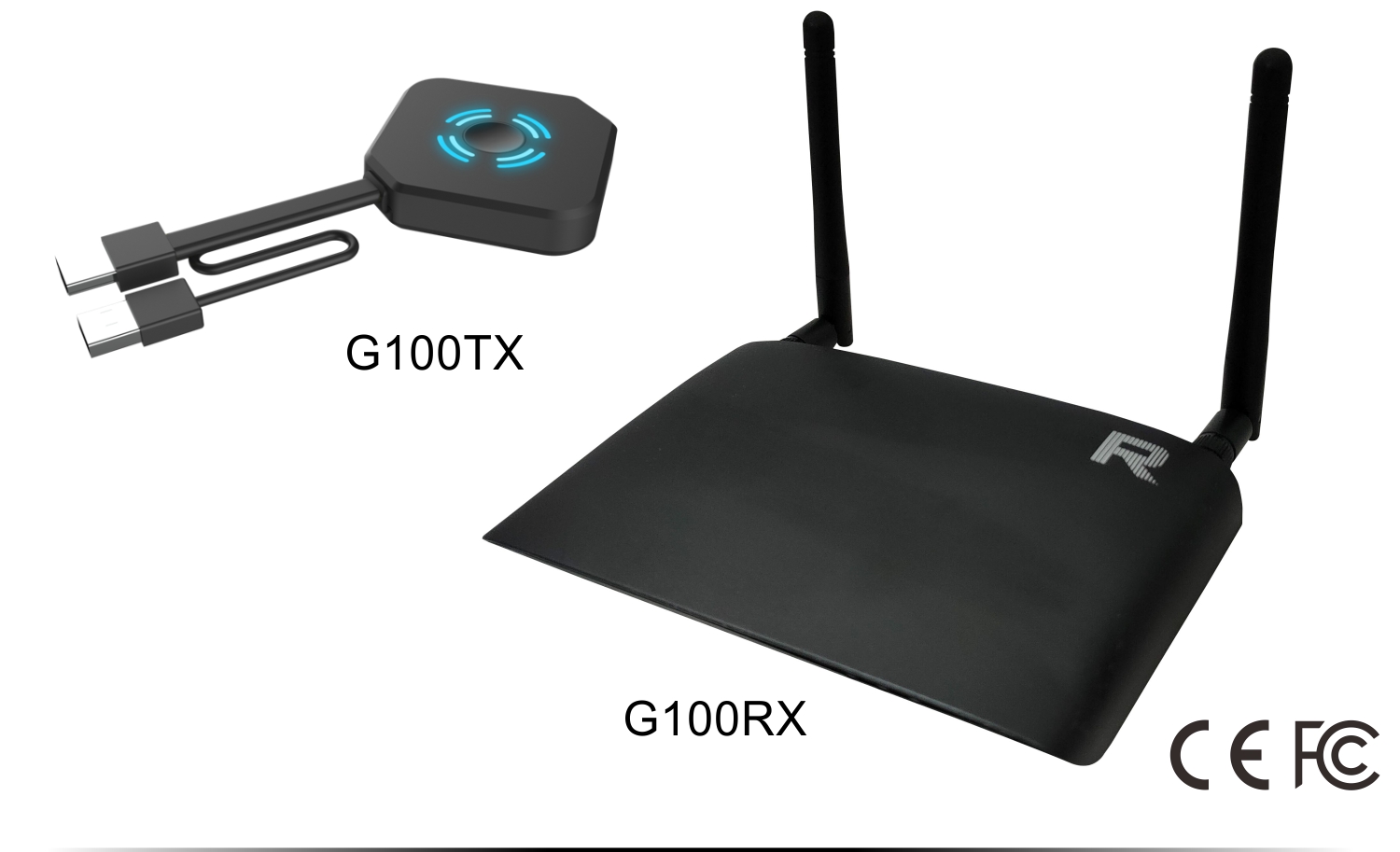

Transmitter (G100TX): compact size with HDMI input, power by USB

• HDMI IN x 1 with extend cable

• USB for power (5V/500mA), same USB for touchscreen back control

• 5G WiFi 11AC+MIMO (2T2R), internal WiFi antenna

• LED indicator (Power / WiFi connection)

Receiver (G100RX): small box with HDMI output

• HDMI OUT x 1

• MicroUSB for power (5V/1A), same USB for touchscreen back control

• 2.4G/5G WiFi 11AC MIMO (2T2R), External fixed WiFi antenna (3dB) x 2

• LED indicators (Power / WiFi connection)


Main Features:

• OS: Linux, Plug and Play, auto connection.

• Excellent dynamic and static video quality

• Support multiple TX to one RX (up to 30TX)

• Support touch screen back control (Windows/Android)

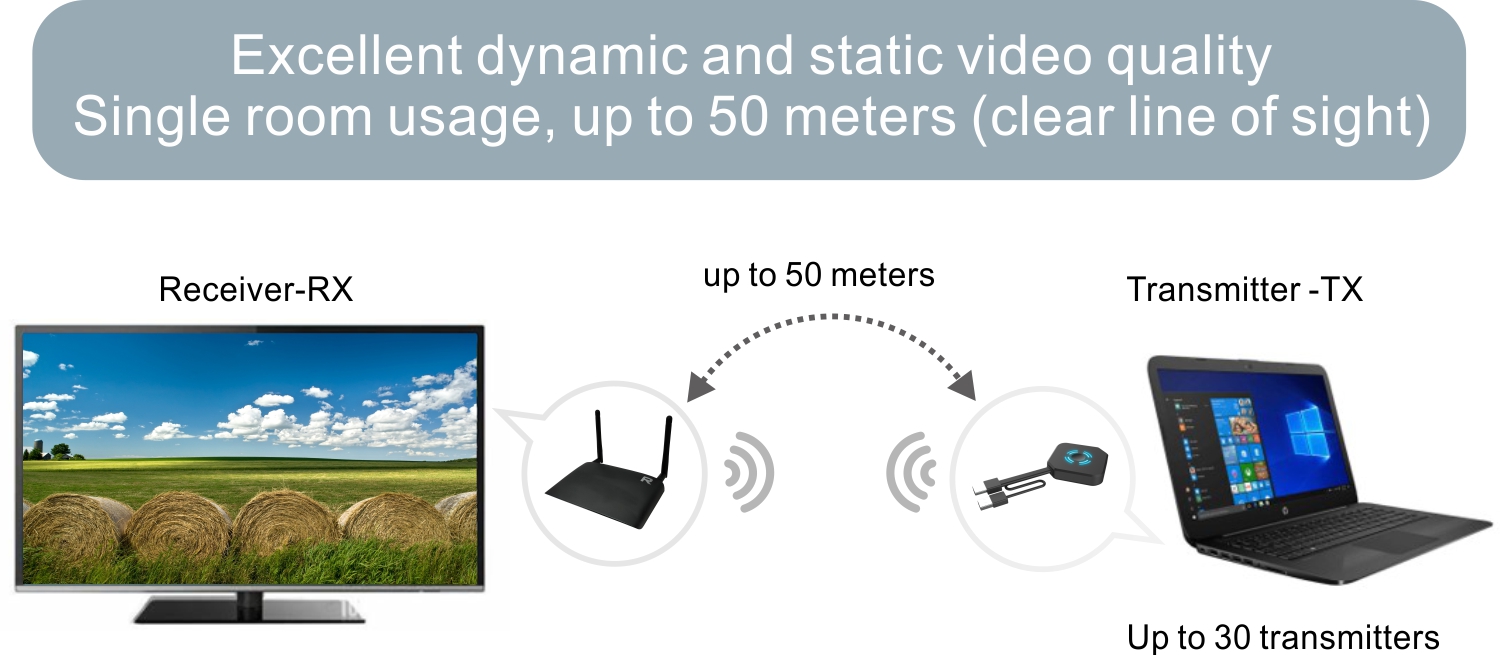

• Single room usage, up to 50 meters (clear line of sight)

• Firmware upgradable by microUSB.

• G100RX support mobile phone (AirPlay, Miracast, DLNA), No APP needed.

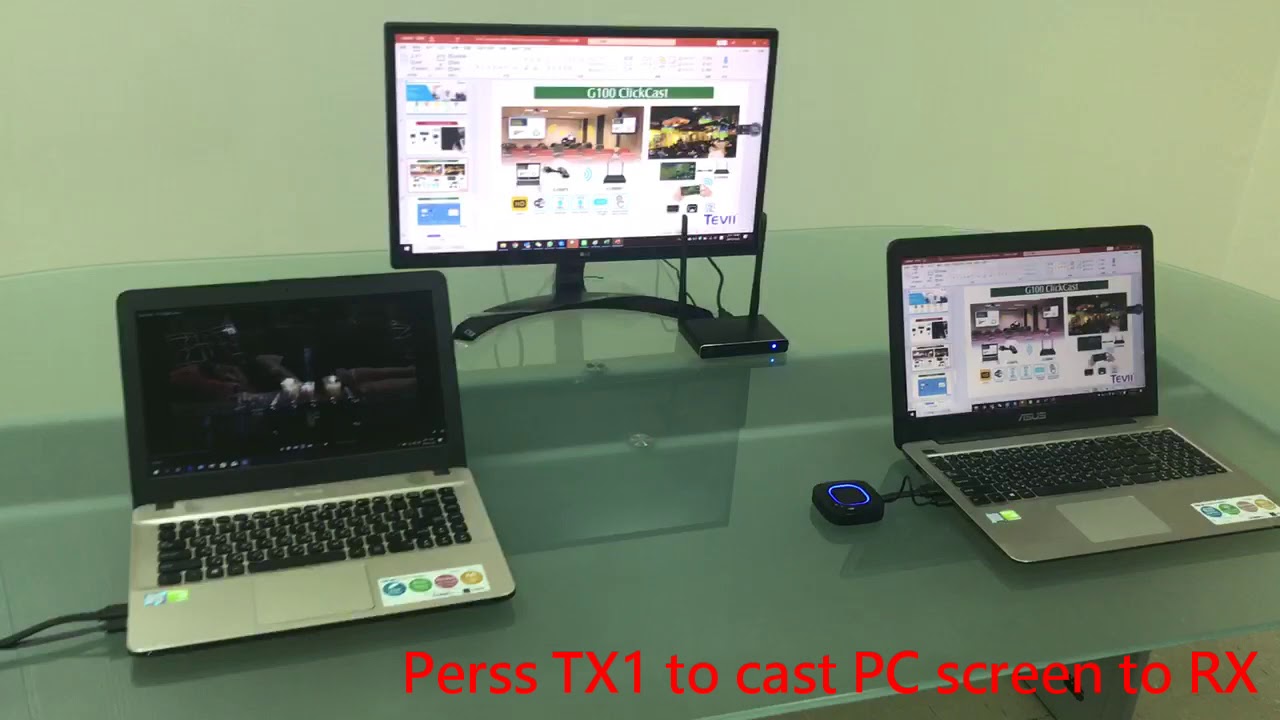

Users can cast their phone screen to G100RX through direct WiFi connection.

Free to select data service through 4G (phone) or home router

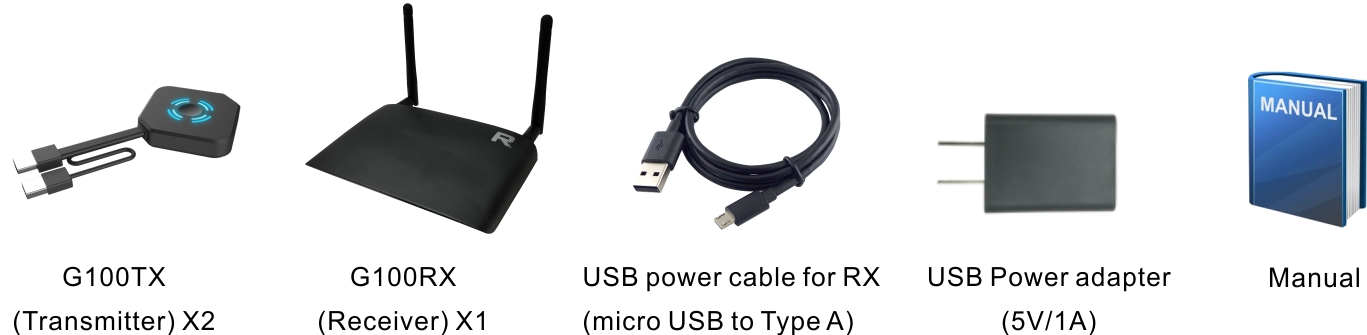

Package Contents
