G300 ClickCast PRO
Hardware & IO connectors:
CPU: H.265 hardware encoder IC; support HDMI 4K60 output

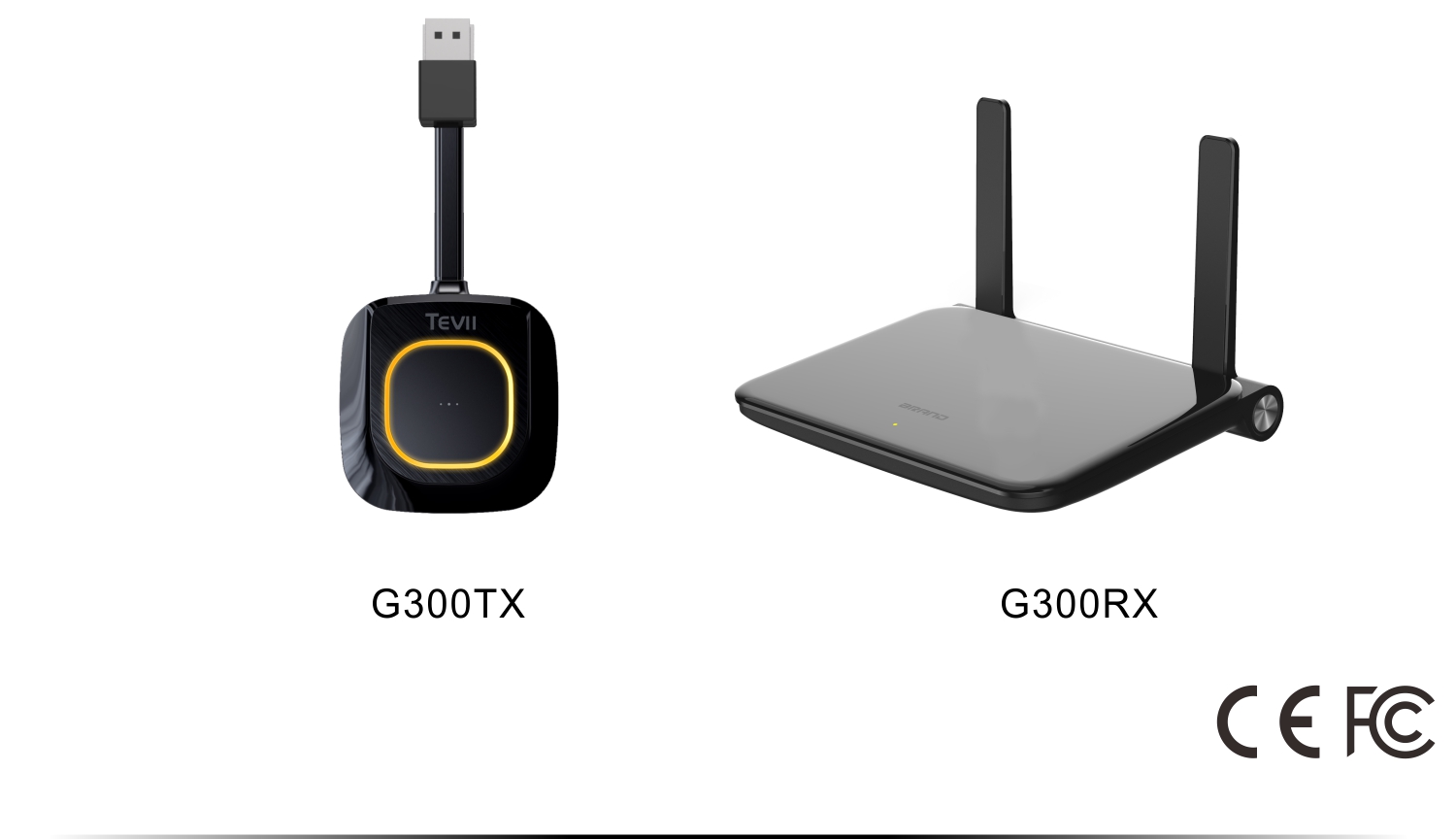

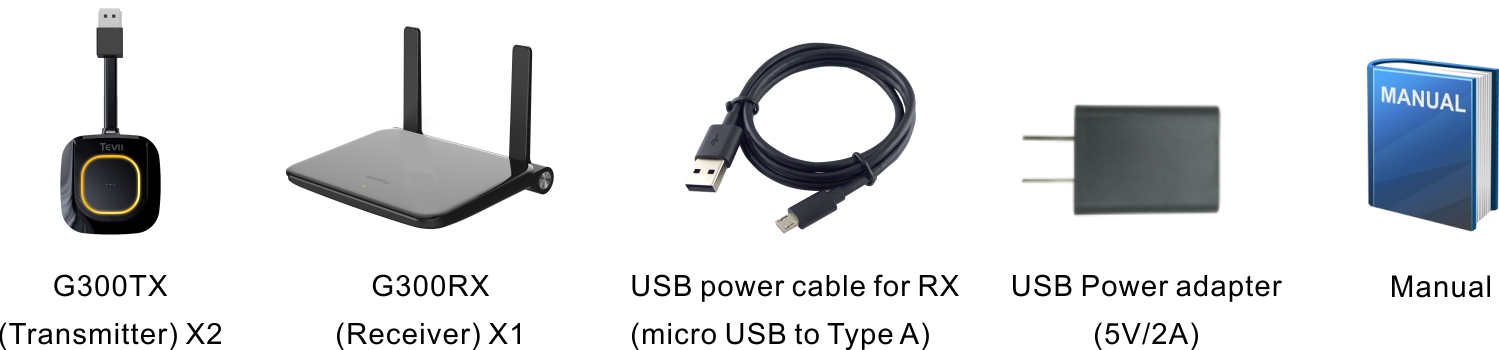

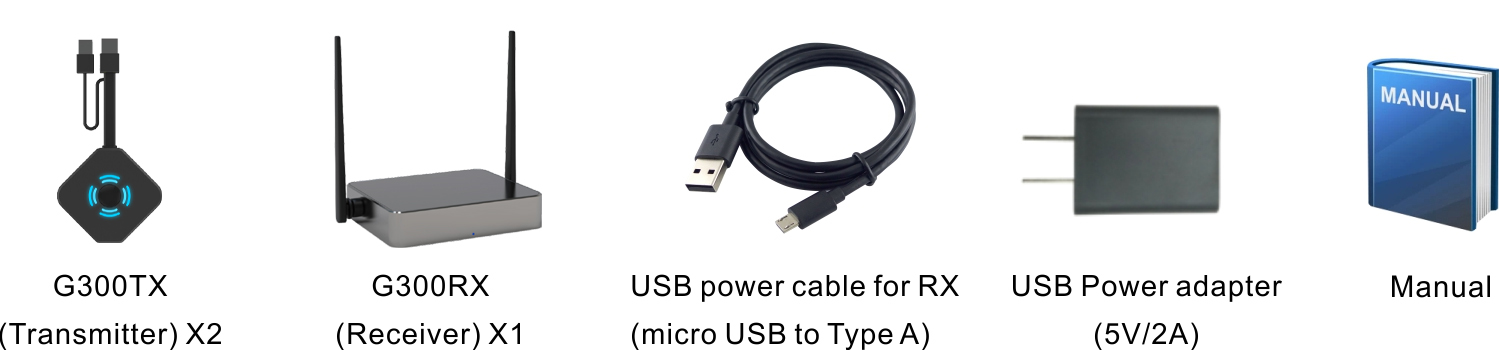

Transmitter (G300TX): compact size with HDMI input, power by USB
• HDMI IN x 1 with extend cable
• USB for power (5V/500mA), same USB for touchscreen back control
• 5G WiFi 11AC+MIMO (2T2R), internal WiFi antenna
• LED indicator (Power/WiFi Connection)

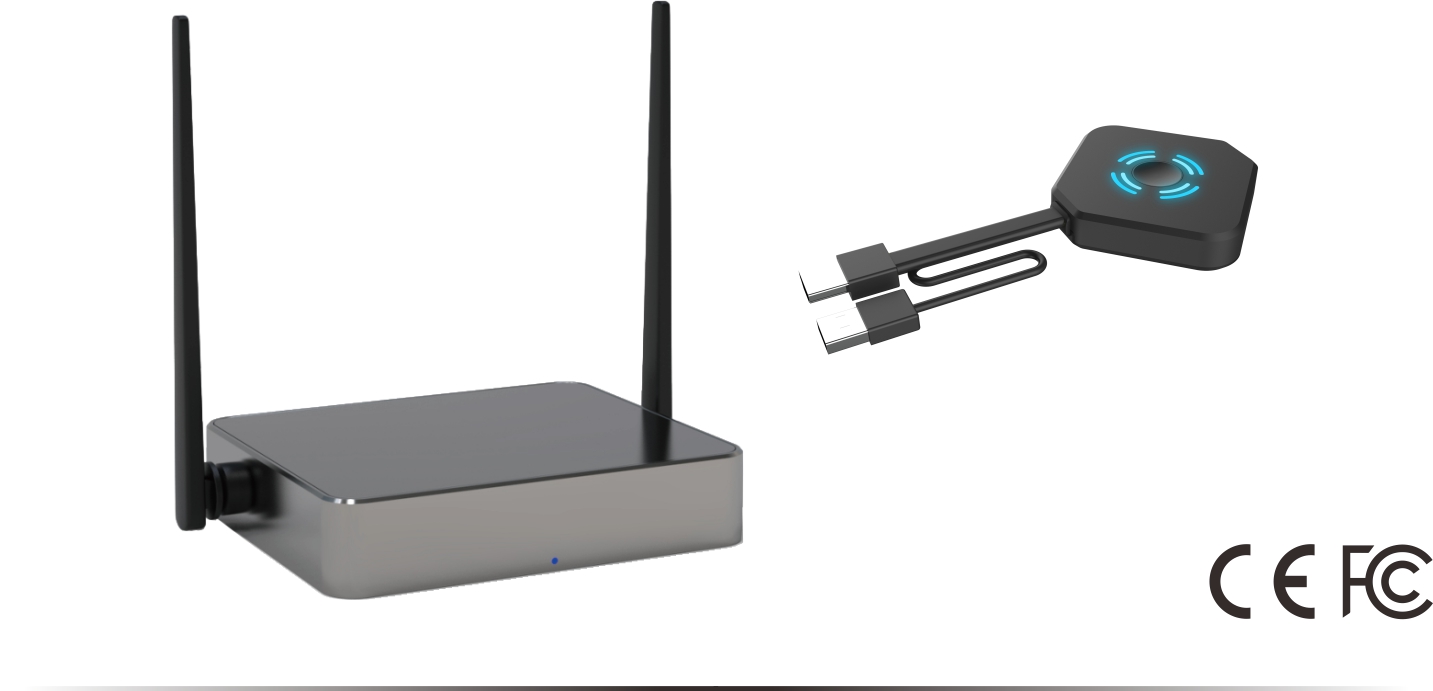

Receiver (G300RX): small box with HDMI output
• HDMI OUT x 1
• MicroUSB for power (5V/2A), same USB for touchscreen back control
• H.265 hardware encoder, supports HDMI 2.0 4K60 output
• 2.4G/5G WiFi 11AC MIMO (2T2R), External fixed WiFi antenna (3dB) x 2
• LED indicators x 3
• OS: Linux, Plug and Play, auto connection.
• Excellent dynamic and static video quality

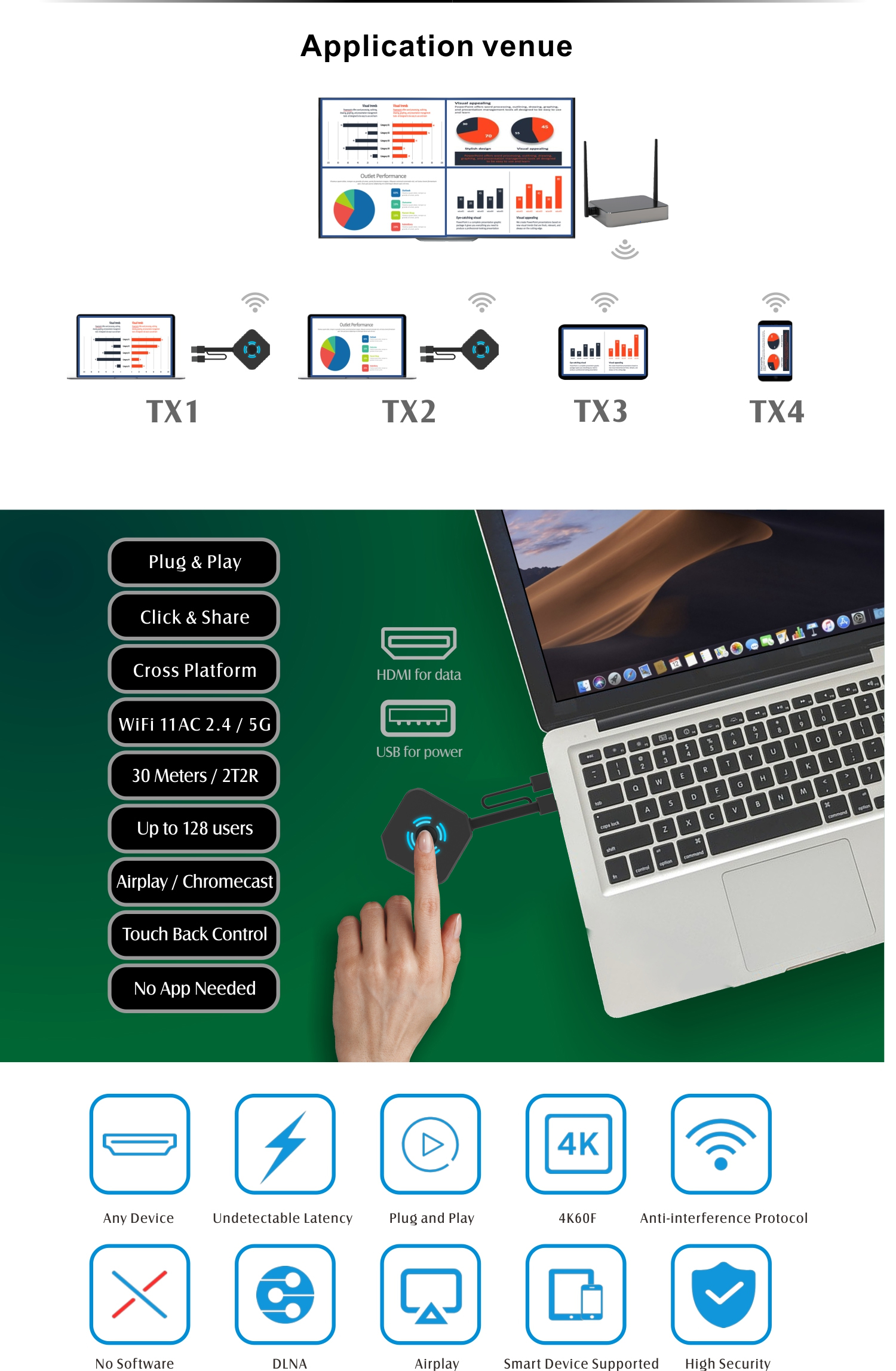

• Support One TX to multiple RX (multicast)

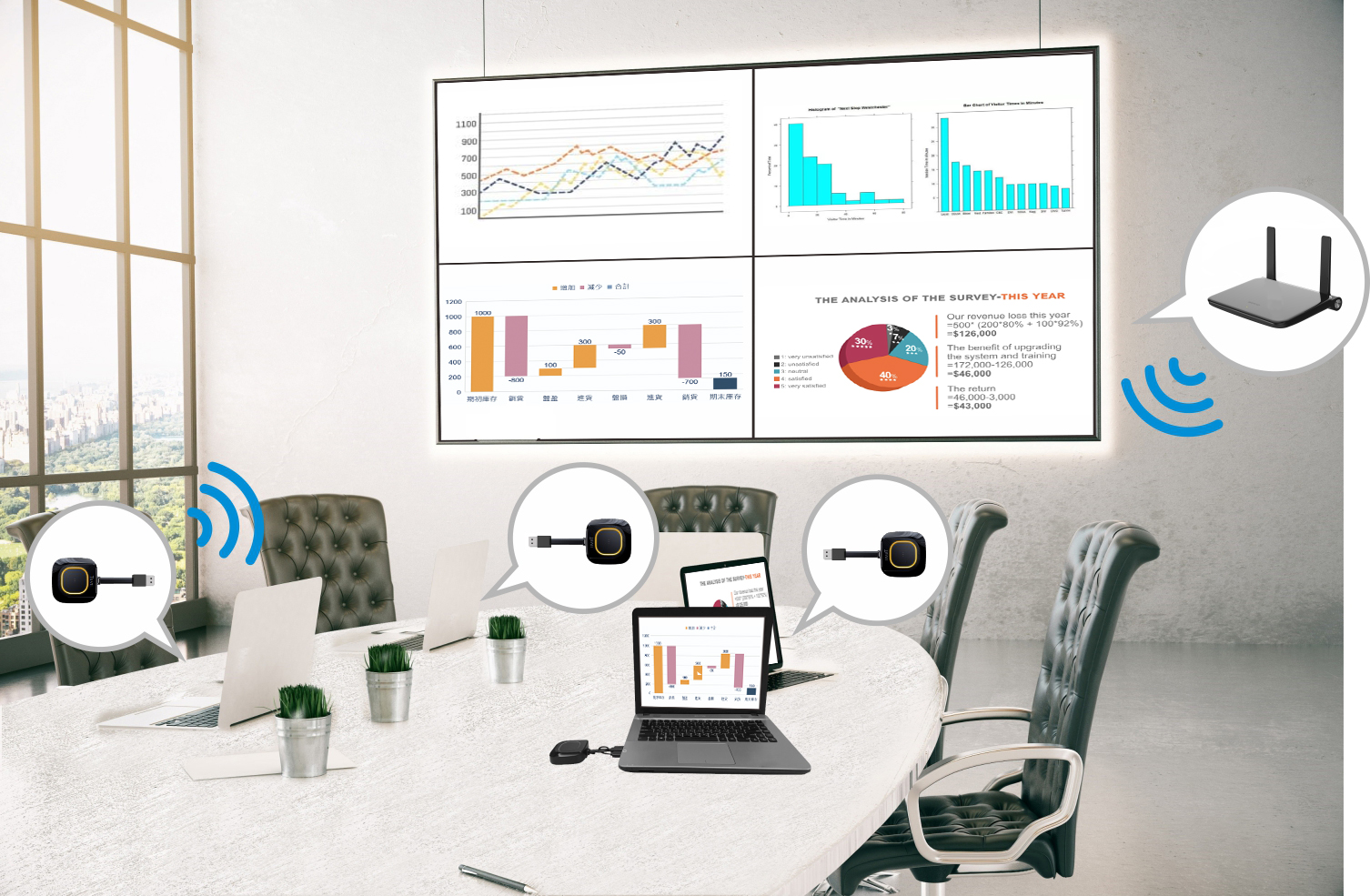

• Support multiple TX to one RX (up to 30TX) / up to 4 split-screen
• Support touch screen back control (Windows/Android)
• Support White Board function

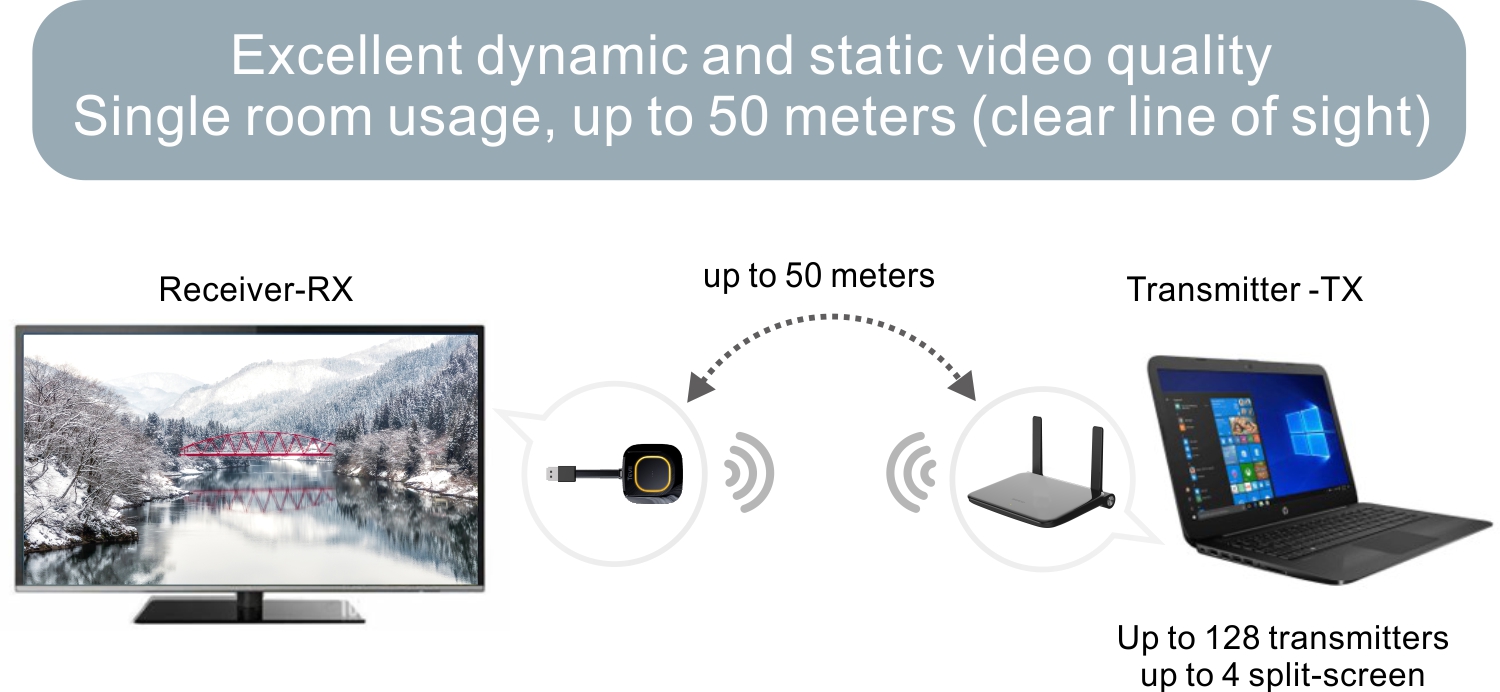

• Single room usage, up to 50 meters (clear line of sight)
• Firmware upgradable by microUSB.
• G300RX supports mobile phone (AirPlay, Miracast, DLNA, GoogleCast), No APP needed.
Users can cast their phone screen to G300RX through direct WiFi connection.
Free to select data service through 4G (phone) or home router
• G300RX supports 4K60 decode (H.265) & HDR10
