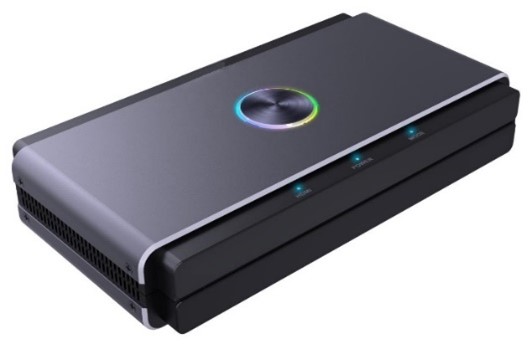

B100 USB+UVC Video Recorder

Key Features

• 4K60 HDMI pass-through

• Recording resolution for standalone mode: 1280x720P60,1920x1080P60

• Capture video in 1080P60 with NV12/ MJPEG/ H.264 hardware encoder (H264 only as USB 2.0 port is working with external storage or phone)

• External Storage Recording + 4K@60Hz HDMI Pass-Through

• Simultaneously Recorders (UVC to PC/Mac + External Storage Recording)

• Supports Smartphone (Android & iOS) mirroring phone screen to 3rd party’s APP on PC/Mac via UVC)

• Supports live stream with OBS & XSplit

• Microphone input for audio overlay

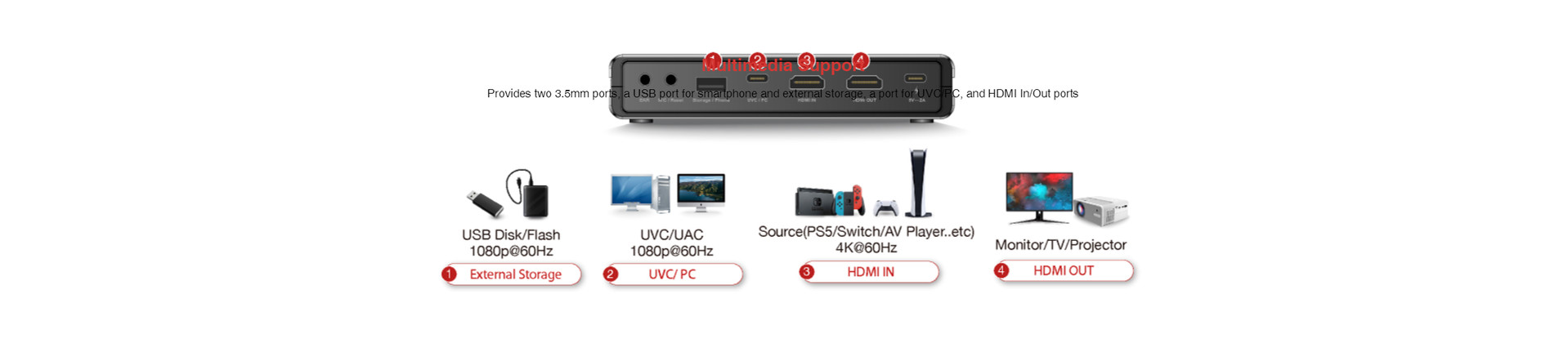

Hardware Spec & Connectors

• HDMI In: HDMI 2.0 with HDCP 1.4 & 2.0 480p@60Hz, 720p@60/50Hz, 1080i@60Hz, 1080p@60/50Hz, 4K@60/30Hz

• HDMI Out: HDMI 2.0 with HDCP 1.4 & 2.0 480p@60Hz, 720p@60/50Hz, 1080i@60Hz, 1080p@60/50Hz, 4K@60/30Hz

• USB 2.0 Type A: support HDD & USB Flash Drive storage

• USB 3.1 Type C: connect to PC

• Microphone headset input (3.5mm 4-pole jack): for audio overlay

• Power DC In (for 5V/2A USB power adapter)


Package Contents

• B100 Video Recorder

• HDMI Cable

• USB Power Cable

• Quick Start Guide



Hardware / System Requirement

• Operating System: Windows10 (64bits) / Mac OS X 10.14 or later


Desktop

• Intel® Core™ i5 CPU i5-8xxx or above / AMD Ryzen 7 or above

• NVIDIA® GeForce® GTX 660 or above / AMD Radeon™ RX 870 or above

• 8GB RAM (dual channel) or above


Laptop

• Intel® Core™ i5 CPU i7-7xxx or above / AMD Ryzen 7 or above

• NVIDIA® GeForce® GTX 1050ti or above

• 8GB RAM (dual channel) or above


Storage Device

• USB storage (HDD: max. 2TB / USB Flash Drive: max: 2TB)

• Support storage format: FAT32, exFAT

• Max file size (File Rotate): 4GB

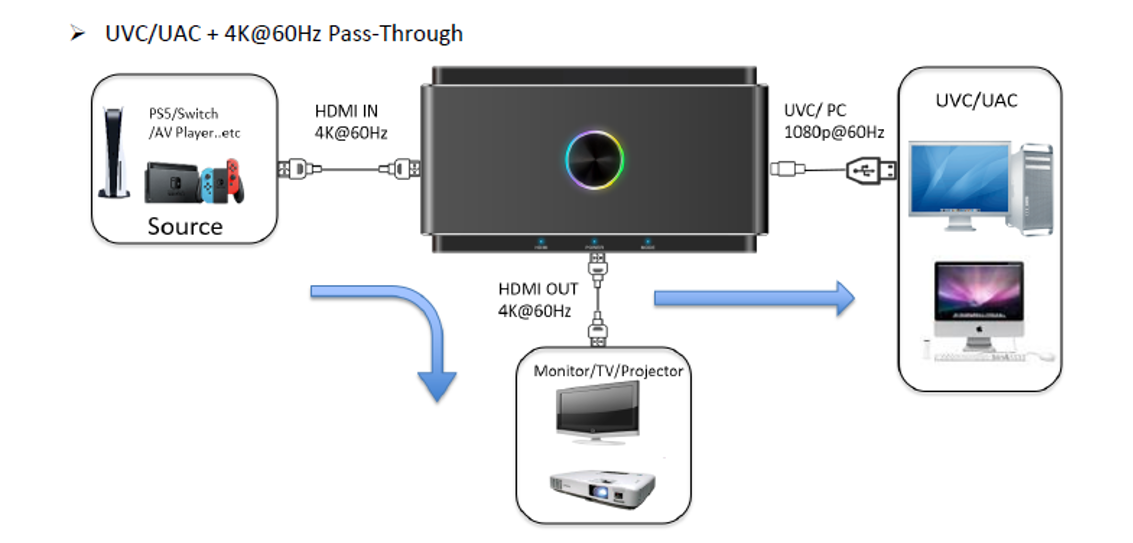

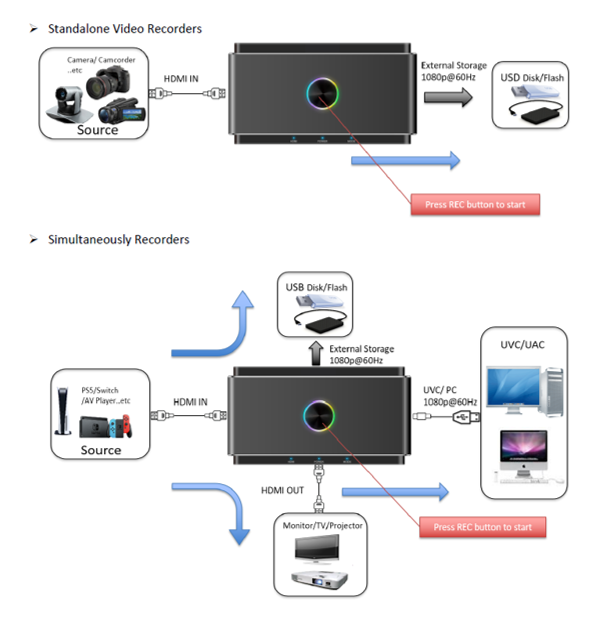

Application Scenario
