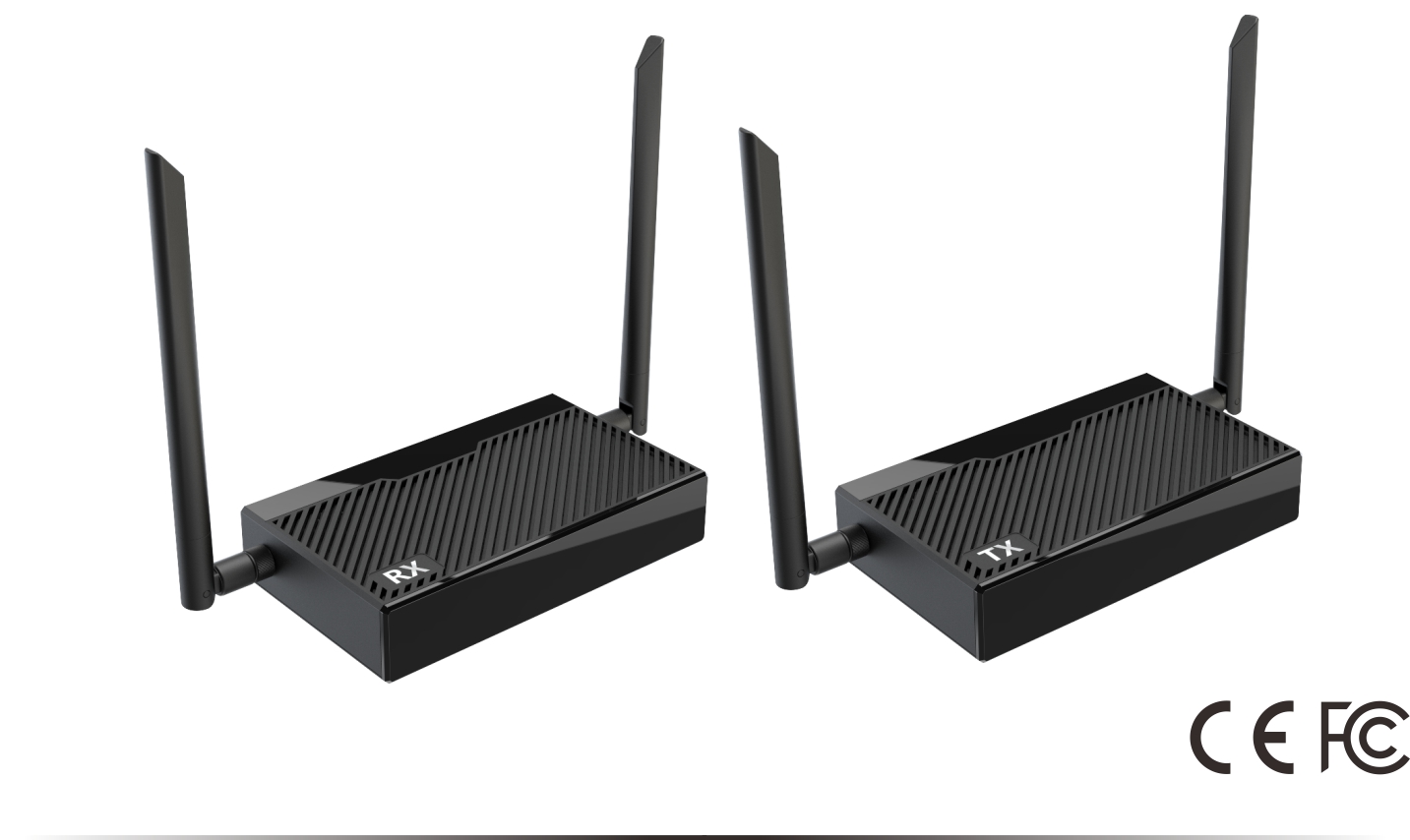

G444 4K Wireless HDMI Extender

Product Specification

• Support 4K60 4:4:4 ultra resolution HDR pass-through

• True 4K wireless transmission through WiFi 11ac (5G, 2T2R, MIMO)

• Up to 100 meters transmission (clear line of sight)

• Auto pair & connection, Auto channel selection, Plug & Play

• Remote Control & USB back control for Keyboard/Mouse

• Ultra-low latency 16ms

• Support touch panel back control.



Features:

Features

Description

HDMI pass-through

4K60/30/24, 1080p60/50/30/25/24, 1080i60/50, 720p, 480p

HDMI Out (RX)

Up to 4K60

HDR support

HDR10

Transmission Distance

Up to 100 meters (clear line of sign)

Latency

As low as 16ms

Protocol

Private

HDMI & HDCP

HDMI 2.0 & HDCP 2.2 compliant

Audio

Stereo, 16bits 48KHz

Authentication/Security

WPA2/WPA-PSK/WPA2-PSK, AES 128 bit

WiFi Connectivity

5GHz 802.11ac, 2T2R, MIMO


Connectors on G444TX (Transmitter):

               Description Connector

G444 TX

DC (power)

DC 12V/1.5A (Power Consumption 12W)

HDMI In

Connect to any HDMI video source (HDR supported)

HDMI Out

Connect to TV/Monitor/Projector (pass-through)

IR In

Connect to IR receiver

IR Out

Connect to IR emitter

USB KVM

Connect to USB port of Video Source (PC/Game Console)

RESET

Reset & Pairing



Connectors on G444RX (Receiver):

               Description Connector

G444RX

DC (power)

DC 12V/1.5A (Power Consumption 12W)

HDMI Out

Connect to display (TV/Monitor/Projector)

IR In

Connect to an IR receiver

IR Out

Connect to an IR emitter

USB-A x 2

Connect to Mouse/Keyboard or USB Nano receiver

AUDIO Out

Audio out to Speaker

RESET

Reset & Pairing


Temperature Range:

Operating

0°C to +40°C (+32°F to +104°F)

Storage:

-10°C to +60°C (+14°F to +140°F)


Humidity:

Operating

10% to 80% relative humidity

Storage

5% to 90% relative humidity


Package Contents

• G444 4K Wireless HDMI Extender with WiFi Antenna x 4 (5dB)

• IR emitter x 1

• 12V/1A USB power adapter x 2, USB-C cable x 1, HDMI (2.0) cable x 2

• Quick Start Guide


Package Information

Dimensions of Device
( L x W x H cm)

Weight (g)

Dimensions of Giftbox                         ( L x W x H cm)

Weight (g)


Dimensions of Carton

( L x W x H cm)

Q'TY / Carton

G.W.  (Kg)

15.5x7.7x2.2

624g



g





10

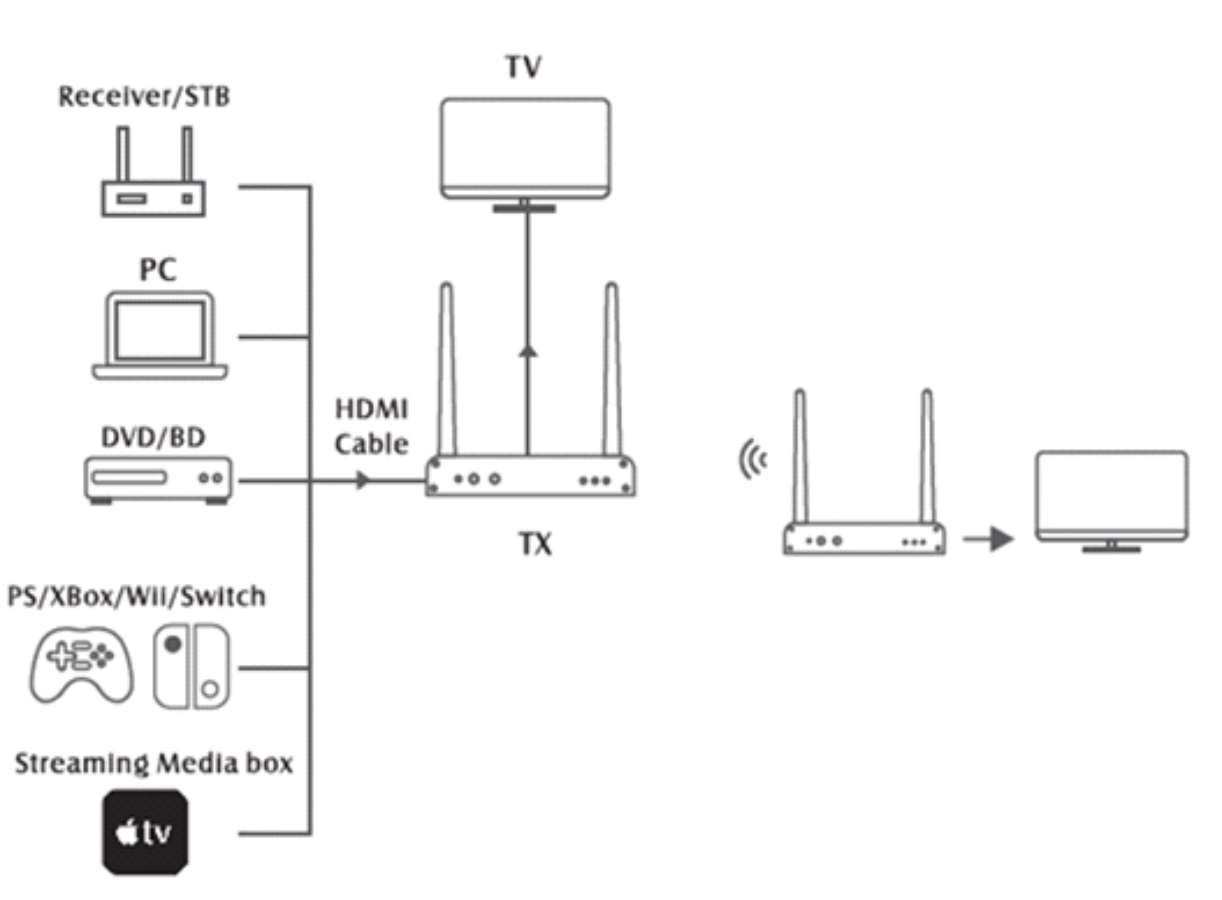

Application Scenario
