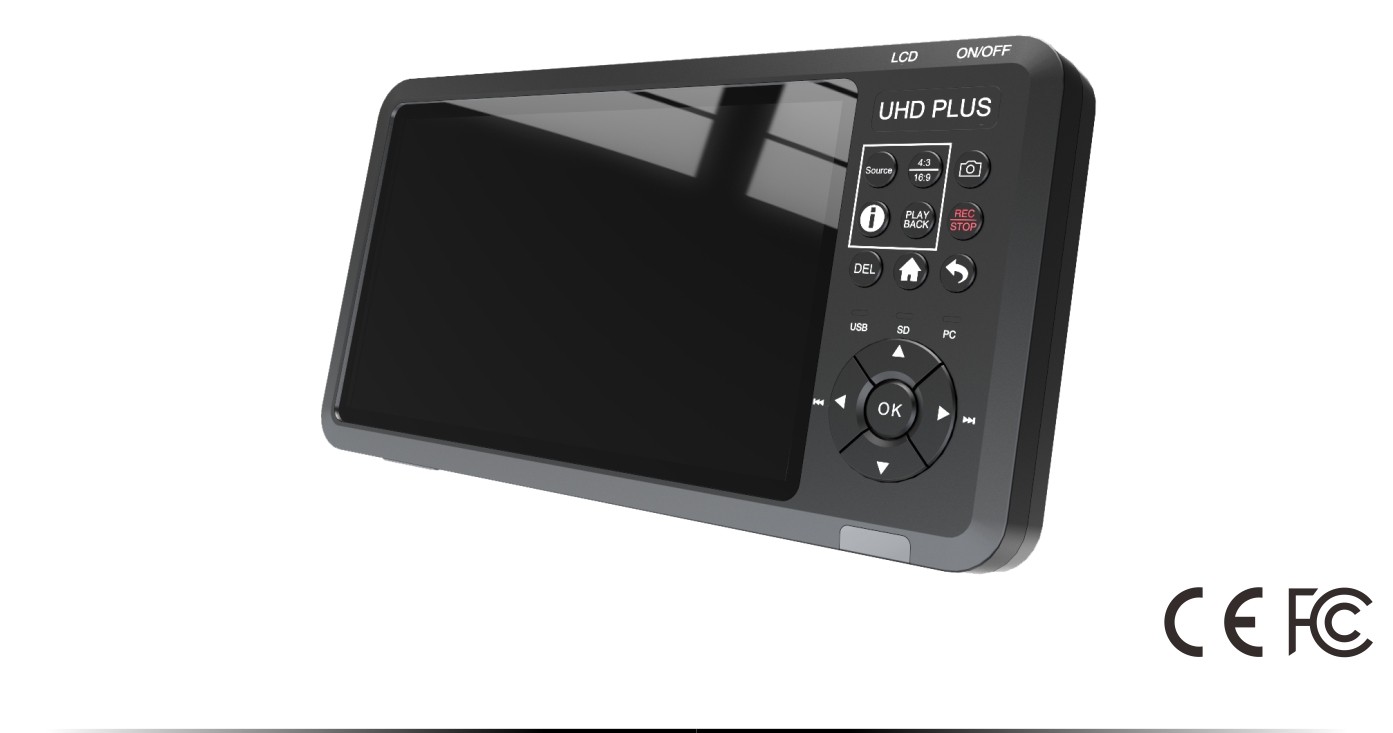

K981 UHD Capture

Key Features

• Input : HDMI 1.4 , HDCP 1.4 ,Play Station 4, Xbox One & Xbox 360, Nintendo Switch etc.

• MIC input, Line input ( sound mixing) , Line output (headphones or  loudspeaker) ,DVI audio input   Output : HDMI (pass-through) up to 1080P60

• Capture resolution up to 1080p 60FPS

• Capture format : MJPEG,YUY2

• Sampling rate : 48kHz PCM Stream and record your Xbox, PlayStation, or Wii U gameplay. 1080p quality with 30 fps

• Built-in live streaming to Twitch, YouTube along with live commentary feature


Specification

   HDMI / MMI Video input supports

4K2K (3840x2160 30p), 1920x1080 (60p, 50p, 25p, 24p,

30p, 60i, 50i), 1360x768 (60p), 1280x1024 (60p), 1280x720 (60p), 1280x768 (60P), 1280x800 (60p), 1024x768 (60p),720x480 (60p, 60i, 50i), 640x480(60p), 720x576 (50p)

   Record Resolution

1920x1080(60p),1280x720(60p),1024x768(60p),1280x800(60p)

   I/O Interface

Input

HDMI in,

MMI in (YPBPR,VGA,RCA)

EXT audio in,

MIC in,

LINE in,

Power in (12V/1.5A).

Output

HDMI out

Line out,

SD Slot*1: SD (FAT32, NTFS, MAX 512G)

USB Type A*1:
Flash Max 512G, hard disk
(FAT32, NTFS, exFAT tec MAX 8T)

Micro USB *1: connect to windows PC for live-streaming (OBS)

   Adapter Voltage

Input 100~240V 50/60Hz, Output 12V/1.5A

   Working temperature

0 to 50℃

   Power consumption

Less than 18W

   Reserve temperature

-20 to +60℃


System Requirements

• Windows® 10 / Windows 8.1 / Windows 7 (SP1)

• Computer: Intel® Core™ i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or above

• 8 GB RAM or above

• System compatible


Support 3rd party

• OBS (Windows, Mac)

• XSplit (Windows),

• Wirecast (Windows, Mac),

• Adobe Flash Media Live Encoder (Windows),

• DirectShow (Windows),

• DirectSound (Windows)


Computer Recording

• Windows 10 / Windows 8.1 / Windows 7 (x86, x64)

• Linux Ubuntu 14.04


Package Contents

• K981 UHD capture Pad

• HDMI cable *1

• MMI cable *1

• Micro USB cable *1

• Remote controller *1

• Quick Start Guide

• Adapter 12V/1.5A
