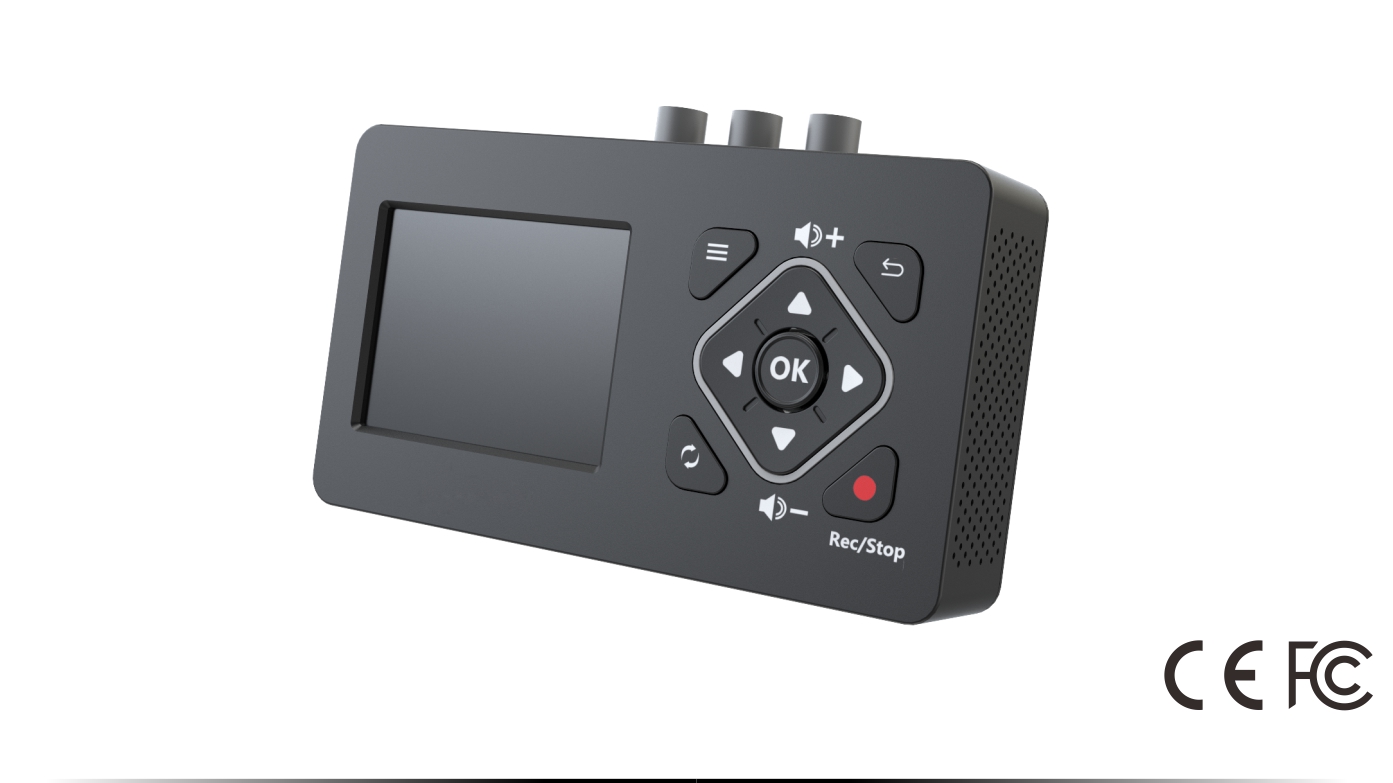

A490 Analog Video Recorder


Hardware & IO connectors:

•  CPU: Support hardware encode 480P MPEG4

•  AV IN: RCA Connectors (Yellow/Red/White)

•  S-Video IN x 1

•  HDMI OUT x 1

•  Micro SD Card x 1: support up to 512G

•  USB Type A x 1: support USB flash pen drive (up to 512G)

•  Display: 2.4” (480*320) panel for OSD Display / Preview / Playback

•  Built-in 1W speaker

•  H/W recorder up to 480P MPEG4 file (support 576i PAL)

•  Support storage format: FAT32/NTFS/exFAT/FAT



Software Feature:

•  OS: Linux

•  OSD: (shown on 2.4" panel) :

-Date/Time

-Reset to factory default

•  Play/Preview/Delete: Video/Picture on Micro SD/USB Flash Drive

•  Auto stop recording: 60/90/120/150 min

•  Firmware upgrade by USB/Micro SD card

•  Max 4GB per file


Package Contents

•  A490 video recorder

•  User manual

•  Power adapter: 5V@1A

•  Power cable x1

•  AV cable x 1

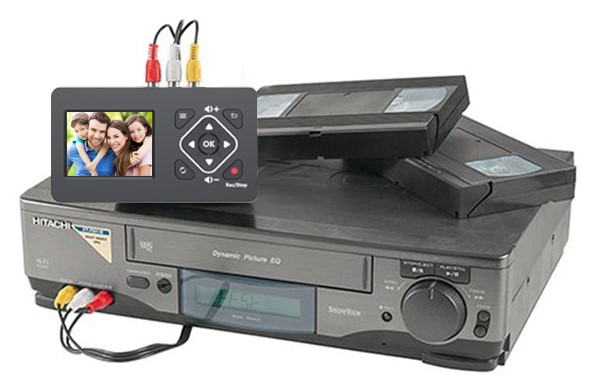

Connection Diagram
