Key Features •HDMI 2.0 pass-through, comply with HDCP 2.2 •Support Game consoles like PS5, Xbox One & Xbox 360, Nintendo Switch & Wii U etc. •Input and Output: 4k60 •Input: HDMI 4K60+MMI (AV+VGA+YPBPR) •Capture same video resolutions as input: -UHD: 4K60, 4K30, 4K25, 4K24 -FHD: 1080p60/p50/p30/p25/p24, 1080i60, 1080i50 -HD: 720p60, 720p50 -SD: 576p50, 480p60, 576i50, 480i60 •Capture format: H.264/H.265 High profile/AAC/MP4/TS •Sampling rate: 48kHz PCM •Record from your STB, Receivers, OTT Boxes，Google Stick, Roku etc. •Record MP3 files from Line in port(128kps/196kps/320kps) •Bitrate in H.264 recording: MAX 50Mbps (MAX:4K60) •Bitrate in H.265 recording: MAX 50Mbps (MAX:4K60) •Modify the recording file name or customize the recording file name through OSD •Video or music can pause recording •Recording files can be stored in 16GB or unlimited •Storage can be SD, USB, or hard disk (TF 512G/USB 1T/Hard Disk 4T or more) •Support: FAT32/NTSF/exFAT/GPT/SSD or more •Screenshot format: JPG •Instant Playback & Pre-set schedule recording •OSD control capture video (MP4 or TS) and audio (MP3) •OSD control with multi-language •UVC support for PC 4K60 USB3.0 (Windows/Linux/MAC) •USB port support cam and capture card
I/O Connectors •HDMI in & out (HDMI 2.0) •MMI in (AV+VGA+YPBPR) •Line in & Line out & Microphone (3.5mm audio jack) •USB 3.0 type A (for storage) •TF card (for storage) •USB-C 3.0 (for PC)

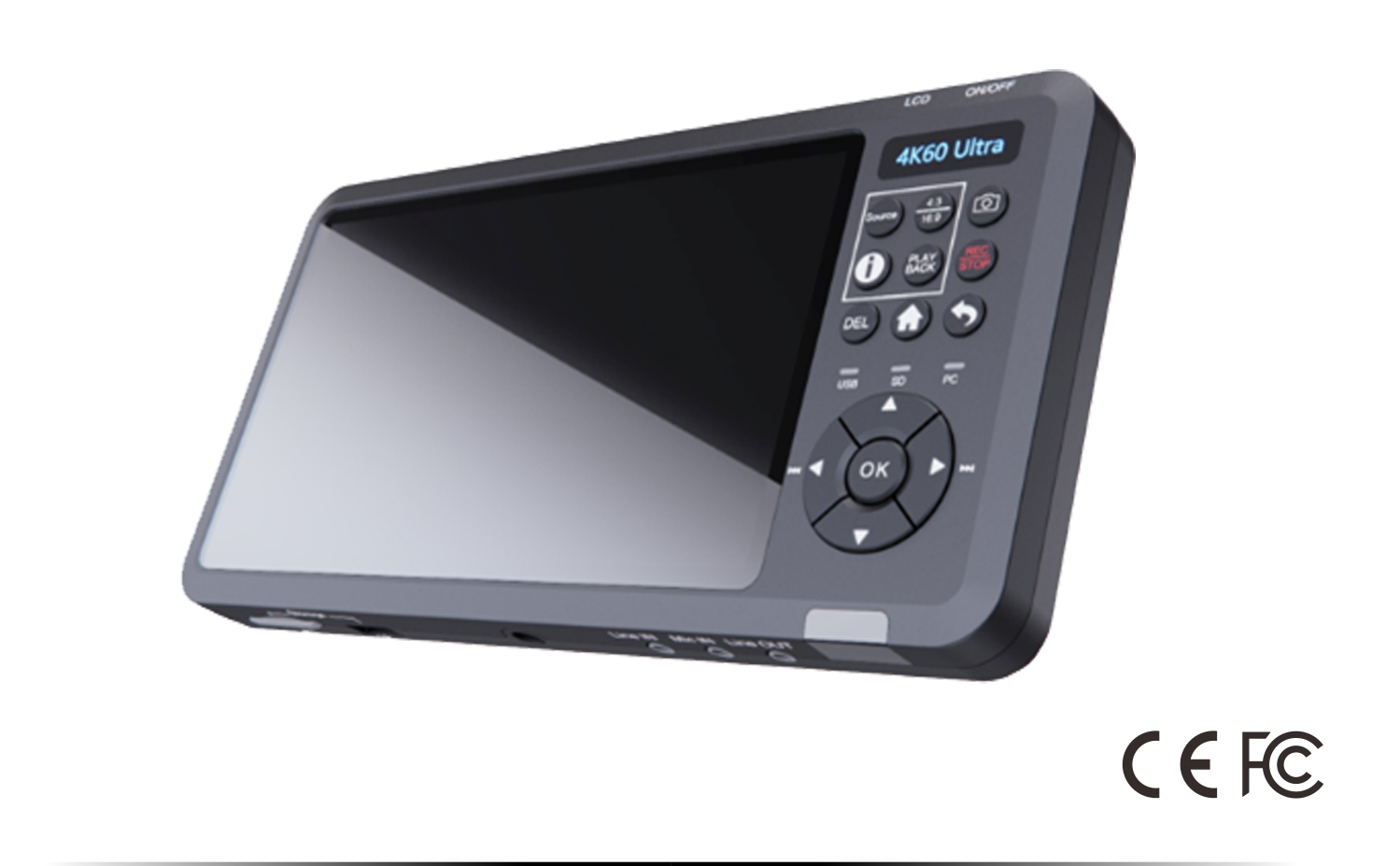

Package Contents •U700 4K60 video recorder •MMI cable •Remote control •HDMI 2.0 cable and USB-C cable (0.8m) •Power adapter 12V/1A •Quick Start Guide
